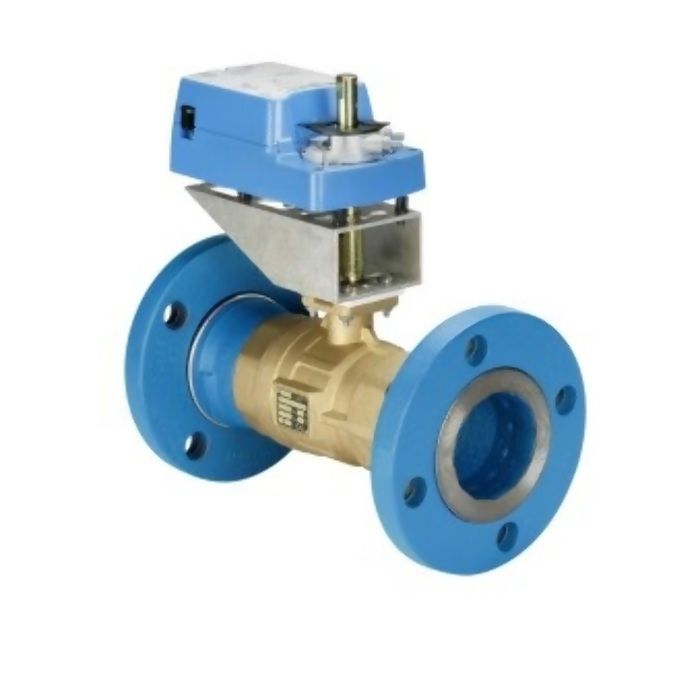

Johnson Controls VG12A5GT+924GGA Ball Valve Assembly, 2 Way, 2-1/2 in

Product Description

The Johnson Controls VG12A5GT+924GGA is a ball valve assembly designed for efficient control in HVAC systems. It features a flanged connection and is suitable for various applications including hot water and chilled water, 50/50 glycol solutions, and steam systems.

• Maintenance-free design for reliable operation
• Rated for 74 Cv flow capacity
• Direct mount electric actuator with 210 lb-in torque

Product Highlights

This valve assembly maintains performance in environments with iron-oxide contaminated water while providing precise control with a 500:1 rangeability.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG12A5GT+924GGA

Technical Specifications

• Housing: NEMA 2, IP42
• Service: Hot water, chilled water, 50/50 glycol solution and 25 psig saturated steam
• Power Consumption: 7.5 VA
• Close-Off Pressure: 100 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -4 F to 122 F (-20 C to 50 C)
• Electrical Connection: 1/4 in. spade terminals with pluggable 3-terminal blocks
