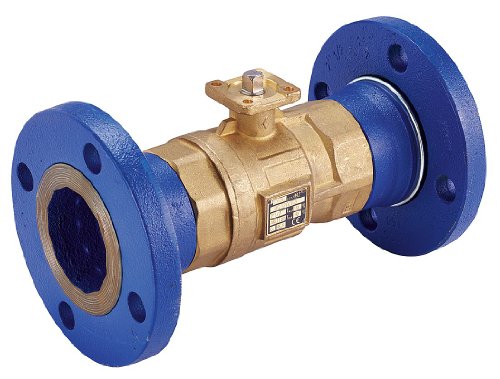

Johnson Controls VG12A5GS Ball Valve Flanged 2-1/2 Inch 100 psig - Replacement VG12A5GS

Product Description

The Johnson Controls VG12A5GS Flanged Ball Valve is designed to regulate the flow of hot and cold mediums in HVAC systems. This valve, part of the VG1000 Series, is ideally suited for applications involving hot water, chilled water, and glycol solutions up to 50% concentration.

• Two-way ball valve with a size of 2-1/2 inches for robust control in various installations.
• Manufactured with 300 stainless steel ball and stem for long-term use in high-temperature settings up to 284 degrees Fahrenheit.
• Equipped with a close-off pressure of 100 psi, ensuring tight shutoff and efficient performance.

Product Highlights

Johnson Controls' VG12A5GS features a unique flow characterizing disk for equal percentage flow characteristics, enhancing temperature control. Its double O-ring seal provides reliability, tested for over 200,000 cycles in iron-oxide contaminated water.

Product Information

Standard Information

• Weight: 10.00 lbs
• Height: 7 inches
• Width: 7 inches
• Length: 11.43 inches

Technical Specifications

• Connection Type: Flanged
• Material: Stainless Steel Trim
• Max Water Temperature: 284 degrees Fahrenheit
• Safe Working Water PSI: 580 psi
• Manufacturer: Johnson Controls Inc
• Country of Origin: Mexico
