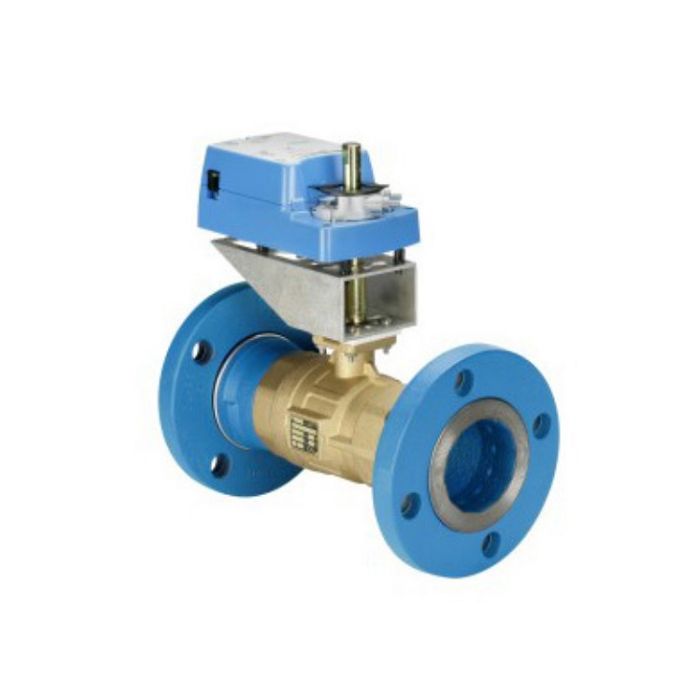

Johnson Controls VG12A5GS+924GGC Ball Valve Assembly 2 Way 2-1/2 In

Product Description

The Johnson Controls VG12A5GS+924GGC is a reliable ball valve assembly designed for two-way applications. It is suitable for use in hot water, chilled water, glycol solutions, and steam systems. The valve features a brass body, stainless steel ball and stem, and direct mount for an electric actuator.

• Maintenance-free design
• 2-inch piping compatibility
• Supports accurate control with tight shutoff

Product Highlights

The VG12A5GS+924GGC valve assembly offers efficient control and is designed to perform in various HVAC applications. Its construction ensures durability and functionality in challenging conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG12A5GS+924GGC
• Minimum Order Quantity: 1
• Availability: Out of Stock

Technical Specifications

• Power Consumption: 7.5 VA
• Close-Off Pressure: 100 psig
• Operating Conditions: -4 F to 122 F (-20 C to 50 C)
• Electrical Connection: 1/4 in. spade terminals with pluggable 3-terminal blocks
• Flow Characteristic: Equal Percentage
• Auxiliary Switches: 2 x SPDT
• Service: Hot water, chilled water, 50/50 glycol solution, 25 psig saturated steam
• Housing: NEMA 2, IP42
