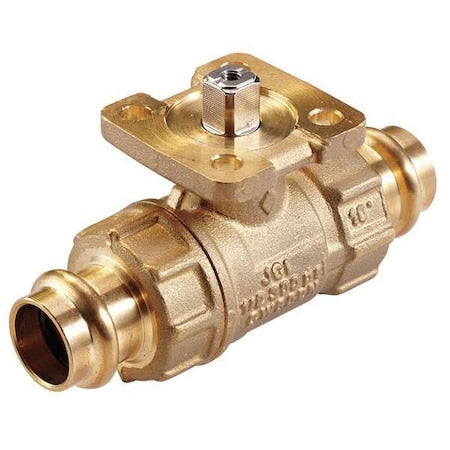

Johnson Controls VG1295AL Ball Valve Electric Actuation 2-Way 1/2 Inch

Product Description

Explore the Johnson Controls VG1295AL, a robust ball valve designed for efficient HVAC control. Ideal for systems using M9000 or VA9000 series actuators, this stainless steel trimmed valve ensures reliability and performance.

• 2-Way flow direction with a press-end connection for seamless installation.
• High tolerance with a safe working water pressure of up to 580 psi.
• Capable of handling maximum water temperatures up to 284 degrees Fahrenheit.

Product Highlights

This valve features an electric actuator source, providing precise control and easy integration into existing setups. Its compact design, measuring only 3.25 inches in depth, allows for discreet placement and operation.

Product Information

Standard Information

• Material: Stainless Steel Trim
• Connection Size: 1/2 inch

Technical Specifications

• Model Number: VG1295AL
• Working Steam PSI: 15 psi with thermal spacer
• Country of Origin: Mexico
• Actuation Type: Electric
• Maximum Closeoff Pressure: 200 psi
• Width: 1.31 inches
• Height: 1.88 inches
