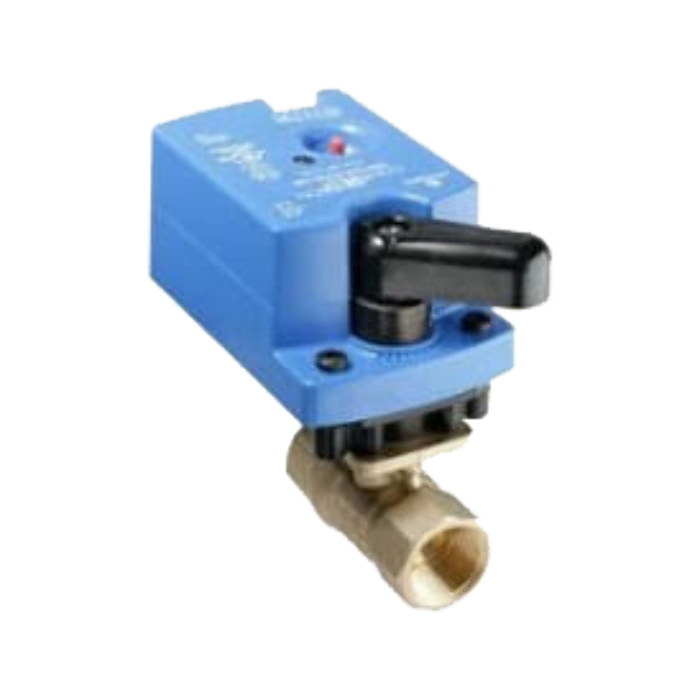

Johnson Controls VG1295AL+9T4GGA Two-Way Stainless Steel Trim Press End Connection Ball Valve with VA9104-GGA-3S Non-Spring-Return Actuators

Product Description

The Johnson Controls VG1295AL+9T4GGA Ball Valve efficiently manages the flow of hot or chilled water and, in certain models, low-pressure steam in HVAC systems. Featuring a forged brass body, these valves support control mechanisms such as on/off, floating, or proportional control. This product includes the Johnson Controls VA9104 Series Non-Spring-Return Actuators, enhancing its functionality.

• Designed for HVAC system control
• Compatible with VA9104 Series Non-Spring-Return Electric Actuators
• Supports multiple control mechanisms including on/off, floating, and proportional control

Product Highlights

Johnson Controls ball valves are known for their reliability and precise control in various applications. The VG1295AL model, in particular, stands out with its robust brass construction and compatibility with various actuators.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1295AL+9T4GGA

Technical Specifications

• Body Material: Forged Brass
• Pressure Rating: 300 psig static
• Size: 1/2 inch through 1 inch
• Actuator Type: VA9104 Series Non-Spring-Return
