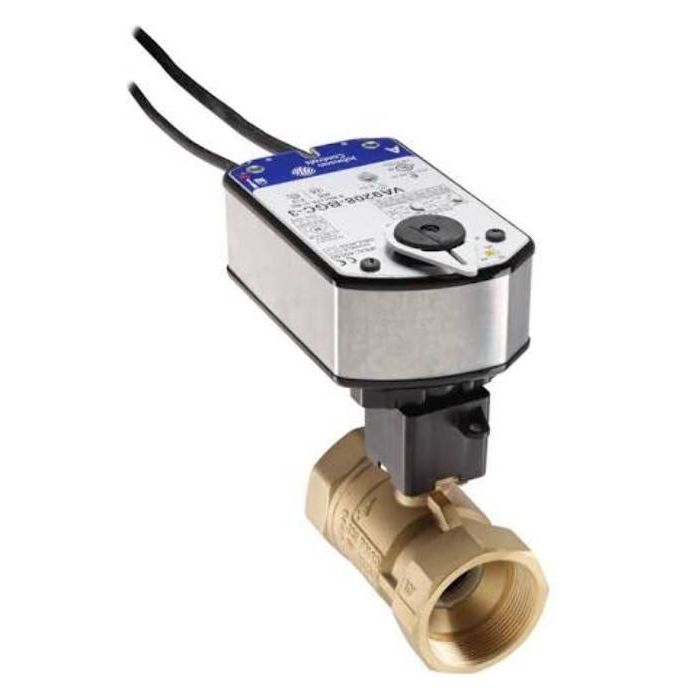

Johnson Controls VG1245FTH958BAC Ball Valve Assembly 2 Way 2 in.

Product Description

The JOHNSON CONTROLS VG1245FTH958BAC is a ball valve assembly with a 2-way configuration and a 2-inch size. It features a forged brass body, stainless steel ball and blowout-proof stem, and a direct mount electric actuator. Designed for HVAC systems, it handles hot water, chilled water, 50/50 glycol solution, and 15 psig saturated steam.

• Maintenance-Free Design
• Performs Without Failure In Excess Of 200,000 Full Stroke Cycles In Iron-Oxide Contaminated Water
• 500:1 Rangeability

Product Highlights

This valve assembly provides accurate control under all load conditions with a 500:1 rangeability and is designed for long-term performance in demanding HVAC environments.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1245FTH958BAC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, And 15 psig Saturated Steam For HVAC Systems
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 0.05 A Running, 0.03 A Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
• CV: 73.7
• Trim: Stainless Steel
• Runtime: 55-71 Secs
• Voltage: 120V
• Actuator: VA9208-BAC-3
• Assembly: Assembly
• Fail-Safe: Spring Return
• Connection: NPT
• Valve Size: 2 in
• Nema Rating: Nema 2
• Valve Piping: 2-Way
• Actuator Type: Electric
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 2 in
• Control Signal: Analog
• MPN: VG1245FTH958BAC
• Brand: JOHNSON CONTROLS
• Control Input: On/Off
• Control Valves Type: Ball Valve
• Spring Return: Spring Return
• Manufacturer: Johnson Controls
• Part Number: VG1245FTH958BAC
