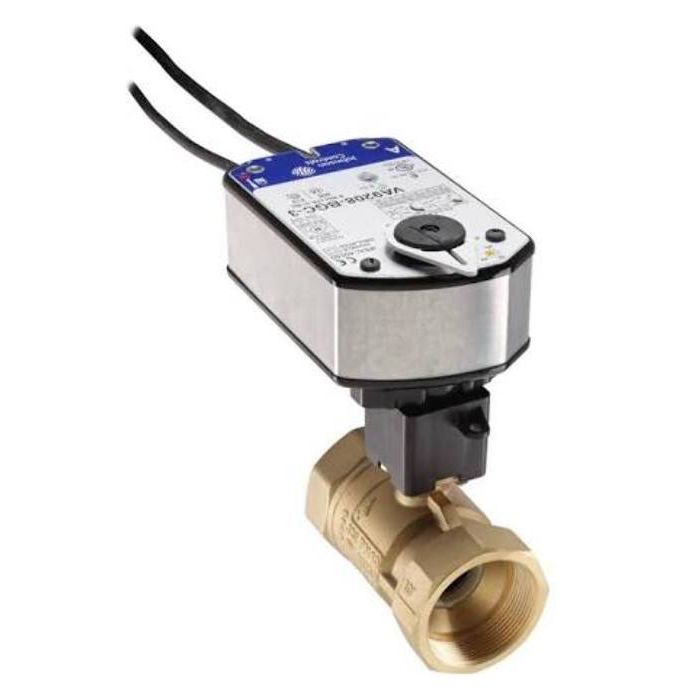

Johnson Controls VG1245FTH938BAC Ball Valve Assembly 2 Way, 2 in.

Product Description

The JOHNSON CONTROLS VG1245FTH938BAC is a ball valve assembly with a 2-way, 2-inch NPT design and a 73.7 Cv rating. It features a forged brass body, stainless steel ball and blowout-proof stem, and a direct mount electric actuator. It has a 70 lb-in spring return and operates on 85-264 VAC with on/off control.

• Maintenance-Free Design
• Performs Without Failure In Excess Of 200,000 Full Stroke Cycles In Iron-Oxide Contaminated Water
• 500:1 Rangeability

Product Highlights

This ball valve assembly is designed for regulating the flow of hot or chilled water and low-pressure steam in HVAC systems.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1245FTH938BAC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, And 15 psig Saturated Steam For HVAC Systems
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 0.05 A Running, 0.03 A Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
• CV: 73.7
• Trim: Stainless Steel
• Runtime: 55-71 Secs
• Voltage: 120vac
• Actuator: VA9208-BAC-3
• Fail-Safe: Spring Return
• Connection: NPT
• Valve Size: 2 in
• Nema Rating: Nema 2
• Valve Piping: 2-Way
• Close-Off Rating: 200 PSI
