Johnson Controls Vg1245ft+958bac 2In 2W Ball Valve 73.7Cv

Product Description

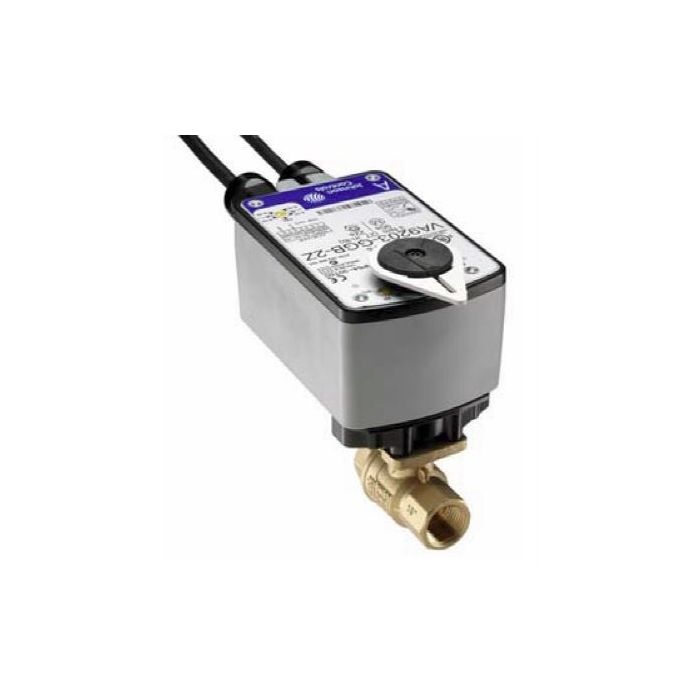

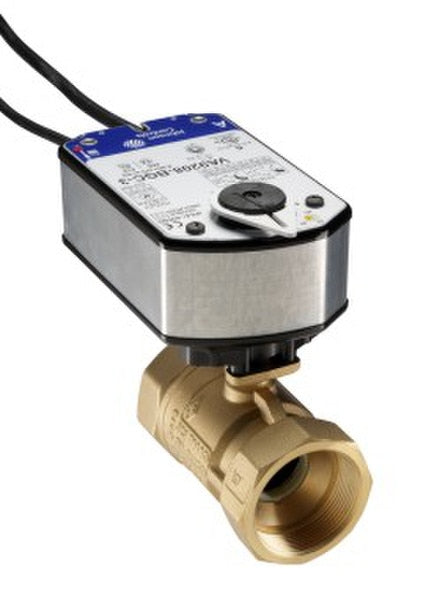

The JOHNSON CONTROLS VG1245FT+958BAC is a 2-way ball valve with a 2-inch connection size and a Cv rating of 73.7. It features stainless steel trim and spring return functionality with two switches. This valve is designed for controlling chilled water, hot water, 50% glycol, and 15 psig steam. It is suitable for use with spring return and non-spring return direct-coupled actuators.

• Minimum 200,000 full cycle life expectancy
• Compatible with water, glycol, and low-pressure steam
• Equal percentage flow characteristics

Product Highlights

The VG1000 series valves are used for equal percentage flow control and are available in connection sizes from 1/2 in. to 2 in.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1245FT+958BAC
• Country of Origin: US

Technical Specifications

• CV: 73.7
• Trim: Stainless Steel
• Runtime: 55-71 Secs
• Voltage: 120vac
• Actuator: VA9208-BAC-3
• Fail-Safe: Spring Return
• Connection: NPT
• Valve Size: 2 in
• Aux. Switch: 2
• Nema Rating: Nema 2
• Valve Piping: 2-Way
• Close-Off Rating: 200 PSI
• Actuator Type: Electric
• Pattern: 2-way
• Control Signal: Analog
• Brand: JOHNSON CONTROLS
• MPN: VG1245FT+958BAC
• Control Input: On/Off
• Control Valves Type: Ball Valve
• Spring Return: Spring Return
