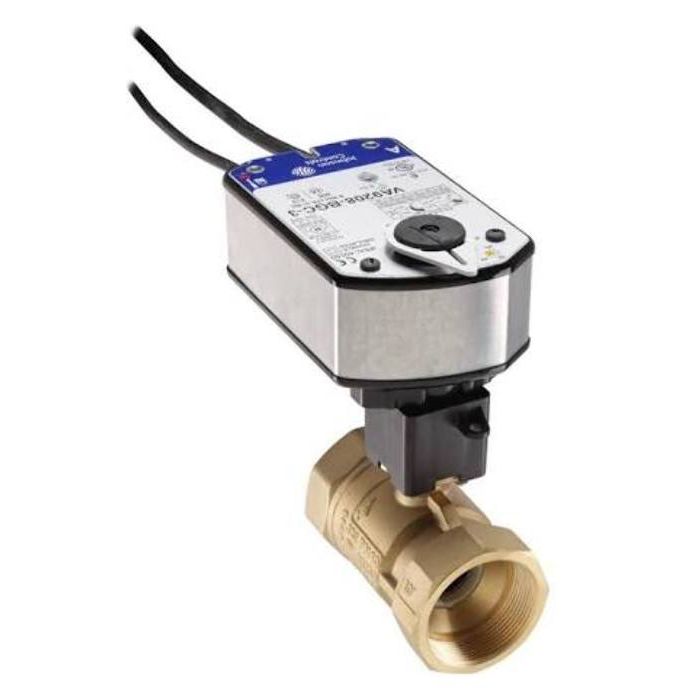

Johnson Controls VG1245FSH958BAC Ball Valve Assembly, 2 Way, 2 in. 46.8 Cv

Product Description

The JOHNSON CONTROLS VG1245FSH958BAC ball valve assembly is a 2-way, 2-inch NPT valve with a 46.8 Cv flow coefficient. It features a forged brass body, stainless steel ball and blowout-proof stem, and a direct mount electric actuator with a 70 lb-in spring return. Operates on 85-264 VAC, on/off.

• Maintenance-Free Design
• Performs Without Failure In Excess Of 200,000 Full Stroke Cycles In Iron-Oxide Contaminated Water
• 500:1 Rangeability

Product Highlights

This valve provides accurate control under all load conditions and is suitable for hot water, chilled water, 50/50 glycol solution, and 15 psig saturated steam HVAC systems.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1245FSH958BAC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, And 15 psig Saturated Steam For HVAC Systems
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 0.05 A Running, 0.03 A Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
• CV: 46.8
• Trim: Stainless Steel
• Runtime: 55-71 Secs
• Voltage: 120V
• Actuator: VA9208-BAC-3
• Assembly: Assembly
• Fail-Safe: Spring Return
• Connection: NPT
• Valve Size: 2 in
• Nema Rating: Nema 2
• Valve Piping: 2-Way
• Close-Off Rating: 200 PSI
• Actuator Type: Electric
• Supply Voltage (Nominal): 24 VAC
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 2 in
• Control Signal: Analog
• Brand: Johnson Controls
• Control Input: On/Off
• Control Valves Type: Ball Valve
• Spring Return: Spring Return
• Manufacturer: Johnson Controls
• Part Number: VG1245FSH958BAC
• MPN: VG1245FSH958BAC
• UPC/EAN: 662011267188
