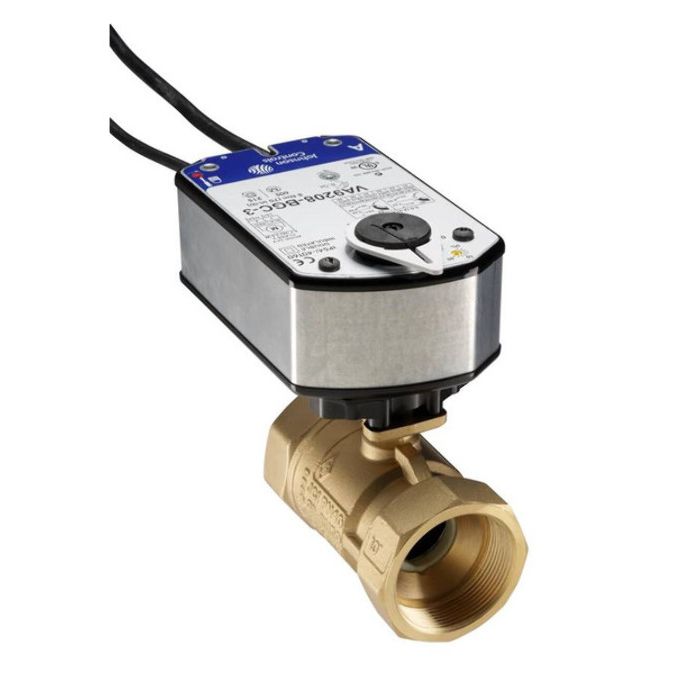

Johnson Controls VG1245ES+958BAC Ball Valve Assembly, 2 Way, 1-1/2 in.

Product Description

The JOHNSON CONTROLS VG1245ES+958BAC is a ball valve assembly with a 2-way, 1-1/2 in. NPT connection. It features a forged brass body, stainless steel ball and blowout-proof stem, and an electric actuator with spring return. Operates on 85-264 VAC and is on/off type. The valve is designed for HVAC systems using hot water, chilled water, 50/50 glycol solution, and 15 psig saturated steam.

• Maintenance-Free Design
• Performs Without Failure In Excess Of 200,000 Full Stroke Cycles In Iron-Oxide Contaminated Water
• 500:1 Rangeability

Product Highlights

This ball valve assembly provides accurate control under all load conditions and is suitable for various HVAC applications.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1245ES+958BAC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, And 15 psig Saturated Steam For HVAC Systems
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 0.05 A Running, 0.03 A Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
• CV: 46.8
• Trim: Stainless Steel
• Runtime: 55-71 Secs
• Actuator: VA9208-BAC-3
• Assembly: Assembly
• Fail-Safe: Spring Return
• Connection: NPT
• Valve Size: 1.5 in
• Nema Rating: Nema 2
• Valve Piping: 2-Way
• Close-Off Rating: 200 PSI
• Actuator Type: Electric
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 1-1/2 in
• Control Signal: Analog
• Manufacturer Part Number: VG1245ES+958BAC
• Manufacturer: Johnson Controls
• Product Series: VG1000 Ball Valves
• Family Series: Johnson Controls HVAC Valves, VG1000 Ball Valves Series
• Description: 1-1/2in. 2W Ball Val 46.8Cv; Ss Trim Spring Closedwith Two Switches
• Capacity: 46.8 Cv
• Pipe Size: 1.5 "
• Connection Type: Threaded
• Max Close-Off Pressure: 200 psi
• Max Static Pressure: 580 psi
• Body Pattern: Two-Way
• Valve Style: Ball
• Medium Temperature Range: -22-284 °F
• Fail-Safe Mode: Spring Normally Closed
