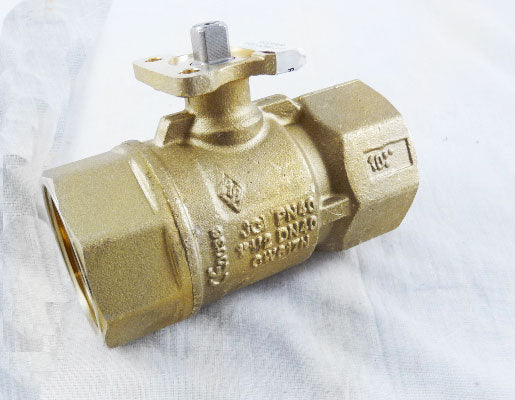

Johnson Controls VG1245ERH938BGA Ball Valve Assembly 2 Way 1-1/2 in.

Product Description

The Johnson Controls VG1245ERH938BGA is a reliable two-way ball valve assembly designed for various HVAC applications. This valve has a size of one and one-half inches and is ideal for directing flow in heating and cooling systems.

• NPT connection for easy installation
• Forged brass body with stainless steel ball for durability
• Maintenance-free operation with a high stroke cycle count

Product Highlights

The valve features a direct mount electric actuator with a spring return for efficient control.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245ERH938BGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Suitable for hot water, chilled water, 50/50 glycol solution, and saturated steam at 15 psig
• Power Consumption: 6.1 VA running, 1.2 VA holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: -40 F to 140 F (-40 C to 60 C)
• Electrical Connection: 48 inches 18 AWG appliance cable with integral 3/8 inch FMC connectors
• Spring Return Torque: 70 lb-in
