Johnson Controls VG1245ER+938BAC Ball Valve Assembly, 2 Way, 1-1/2 in.

Product Description

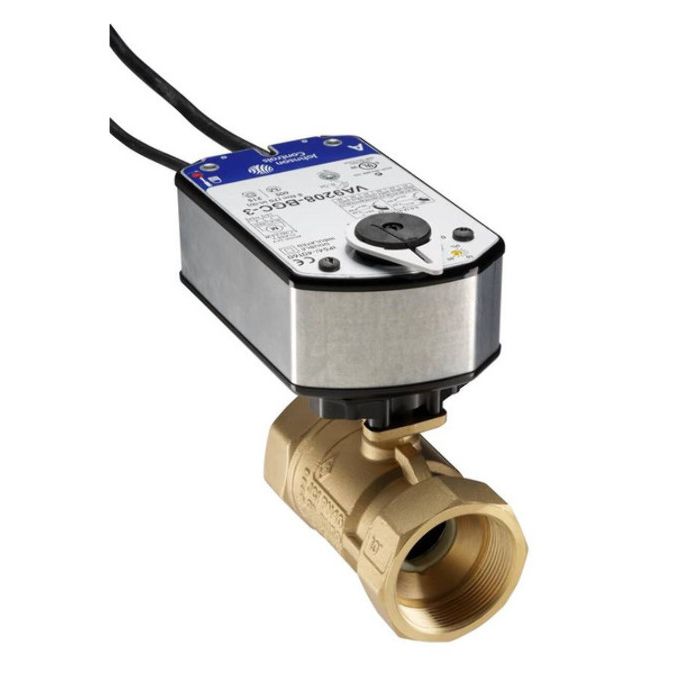

The JOHNSON CONTROLS VG1245ER+938BAC is a ball valve assembly designed for 2-way flow with a 1-1/2 inch connection. It features an NPT connection, a 29.2 Cv flow coefficient, and a forged brass body with a stainless steel ball and blowout-proof stem. The assembly includes a direct mount electric actuator with a 70 lb-in spring return, operating on 85-264 VAC for on/off control.

• Maintenance-Free Design
• Performs Without Failure In Excess Of 200,000 Full Stroke Cycles In Iron-Oxide Contaminated Water
• 500:1 Rangeability

Product Highlights

This ball valve assembly is ideal for HVAC systems using hot water, chilled water, or glycol solutions, providing accurate control under various load conditions.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1245ER+938BAC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, And 15 psig Saturated Steam For HVAC Systems
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 0.05 A Running, 0.03 A Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
• CV: 29.2
• Trim: Stainless Steel
• Runtime: 55-71 Secs
• Voltage: 120vac
• Actuator: VA9208-BAC-3
• Fail-Safe: Spring Return
• Connection: NPT
• Valve Size: 1.5 in
• Nema Rating: Nema 2
• Valve Piping: 2-Way
• Close-Off Rating: 200 PSI
• Manufacturer Part Number: VG1245ER+938BAC
• Manufacturer: Johnson Controls
• Product Series: VG1000 Ball Valves
• Description: 1-1/2in. 2W Ball Val 29.2Cv; Ss Trim Spring Openwith Two Switches
• Capacity: 29.2 Cv
• Pipe Size: 1.5 "
• Connection Type: Threaded
• Max Close-Off Pressure: 200 psi
• Max Static Pressure: 580 psi
• Body Pattern: Two-Way
• Valve Style: Ball
• Medium Temperature Range: -22-284 °F
• Nominal Voltage: 120 VAC
• Fail-Safe Mode: Spring Normally Open
• Actuator Control Style: On-Off
• Auxiliary End Switch: 2
• Flow Capacity: Cv 29.2
• Trim Material: Stainless Steel
• Nominal Supply Voltage: 120 VAC
