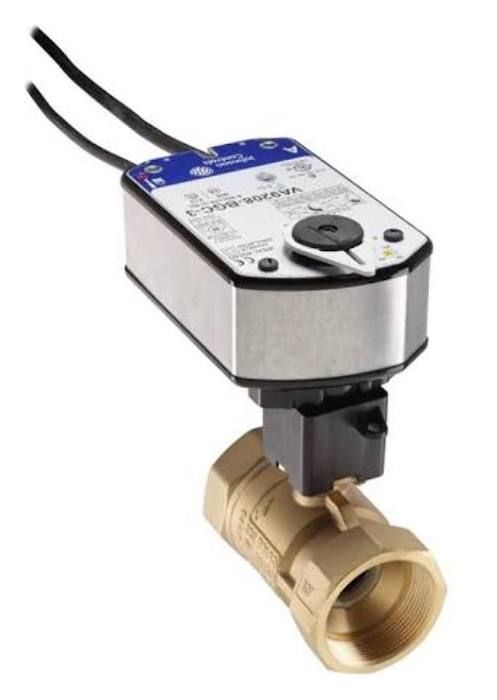

Johnson Controls VG1245EPH958BGA Ball Valve Assembly 2 Way 1-1/2 in.

Product Description

The Johnson Controls VG1245EPH958BGA is a two-way ball valve assembly designed for HVAC systems. It features a forged brass body and a stainless steel ball, which ensures durability and long-term performance. This valve is suitable for various applications, including hot water and chilled water systems.

• Maintenance-free design for lower upkeep.
• Performs well in contaminated water conditions.
• Direct mount electric actuator included for easy installation.

Product Highlights

The valve supports a spring return mechanism and operates on 24 VAC power. It offers a Cv value of 18.7, providing reliable flow control.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245EPH958BGA

Technical Specifications

• Power Consumption: 6.1 VA running, 1.2 VA holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: -40 degrees Fahrenheit to 140 degrees Fahrenheit
• Electrical Connection: 48 inches 18 AWG appliance cable with integral 3/8 inches FMC connectors
• NEMA Rating: NEMA 2, IP54
• Service: Suitable for hot water, chilled water, 50/50 glycol solution, and 15 psig saturated steam
• Dimension: 1-1/2 inches
