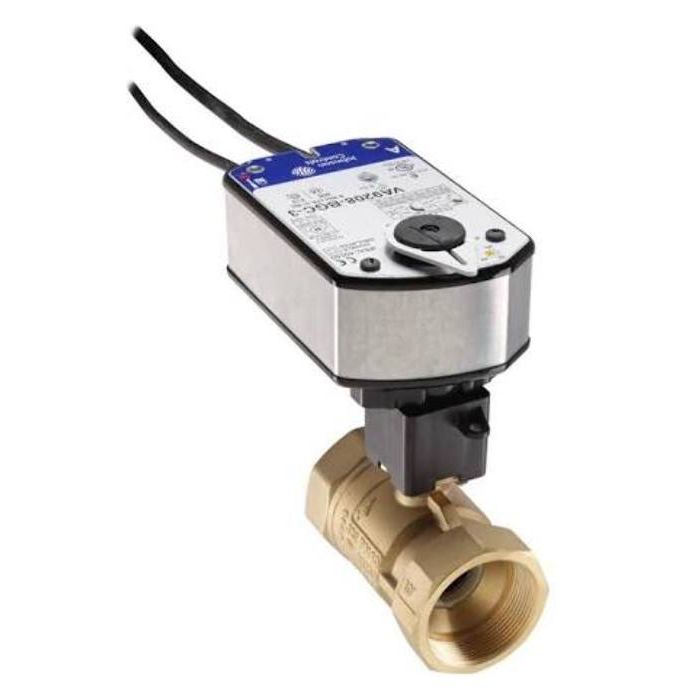

Johnson Controls VG1245EPH948AGA Ball Valve Assembly, 2 Way, 1-1/2 in.

Product Description

The Johnson Controls VG1245EPH948AGA is a 2-way ball valve assembly designed for HVAC applications. This valve features an NPT connection and a Cv value of 18.7. It is constructed with a forged brass body, a stainless steel ball, and a blowout-proof stem, ensuring durability in various conditions. The assembly includes a direct mount electric actuator with a spring return rated at seventy lb-in and operates on 24 VAC with a floating control.

• Maintenance-free design
• Performs effectively in iron-oxide contaminated water
• 200,000 full stroke cycles without failure

Product Highlights

This product excels in hot water, chilled water, and glycol solution applications. It also supports HVAC systems requiring reliable performance under different load conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245EPH948AGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F to 140 F (-40 C to 60 C)
• Electrical Connection: 120 in. 19 AWG Plenum Cable with Integral 3/8 in. FMC Connectors
