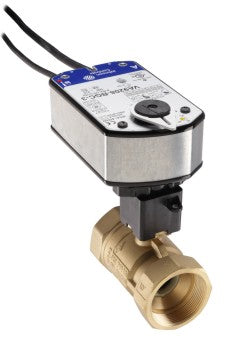

Johnson Controls VG1245EPH938BGA Ball Valve Assembly, 2 Way, 1-1/2 in.

Product Description

The Johnson Controls VG1245EPH938BGA is a two-way ball valve assembly designed for HVAC systems. It features a 1-1/2 inch size and includes a forged brass body for durability. The valve supports NPT connections and comes equipped with a direct mount electric actuator. It delivers a flow coefficient (Cv) rating of 18.7, suitable for various applications.

• Maintenance-free design for reliability
• Supports 200,000 full stroke cycles in contaminated water
• Capable of handling both hot and chilled water

Product Highlights

The VG1245EPH938BGA ball valve assembly is built for efficient operation and accurate control under different load conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245EPH938BGA

Technical Specifications

• Close-Off Pressure: 200 psig
• Operating Conditions: -40 F to 140 F (-40 C to 60 C)
• Power Consumption: 6.1 VA running, 1.2 VA holding
• Flow Characteristic: Equal Percentage
• Service: Hot water, chilled water, 50/50 glycol solution, and 15 psig saturated steam
• Electrical Connection: 48 in. 18 AWG appliance cable with integral 3/8 in. FMC connectors
• Housing: NEMA 2, IP54
