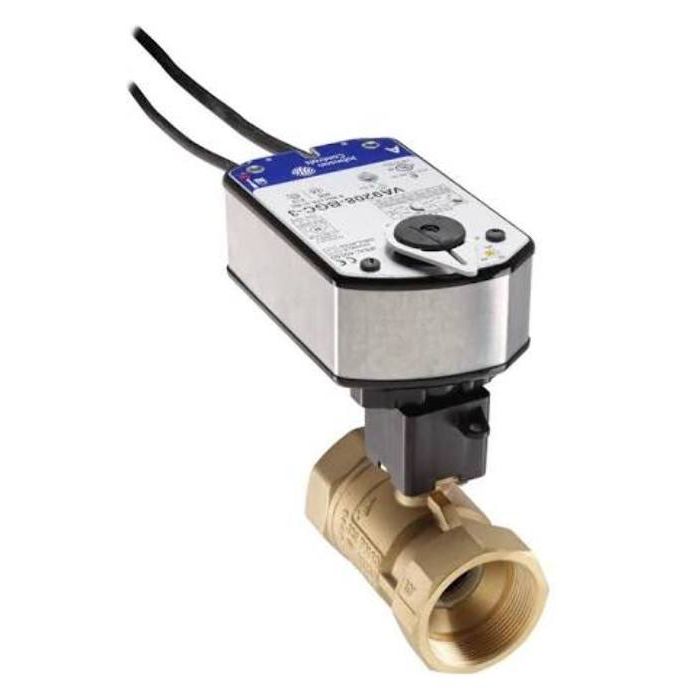

Johnson Controls VG1245EPH928AGA Ball Valve Assembly 2 Way 1-1/2 in.

Product Description

The Johnson Controls VG1245EPH928AGA is a two-way ball valve assembly designed for HVAC applications. This product features a forged brass body, stainless steel ball, and blowout-proof stem, ensuring durability and reliability in various environments. With NPT connections and an eighteen point seven Cv flow coefficient, it supports efficient fluid control.

• Maintenance-free design
• Direct mount electric actuator with spring return
• Operates in extreme temperatures from minus forty degrees to one hundred forty degrees Fahrenheit

Product Highlights

This valve assembly excels in applications requiring hot water, chilled water, and glycol solutions, along with handling saturated steam.

Product Information

Standard Information

• Brand: Johnson Controls
• Minimum Order Quantity: 1

Technical Specifications

• Close-Off Pressure: 200 psig
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F to 140 F
• Electrical Connection: 120 in. 19 AWG Plenum Cable
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam
• Housing: NEMA 2, IP54
