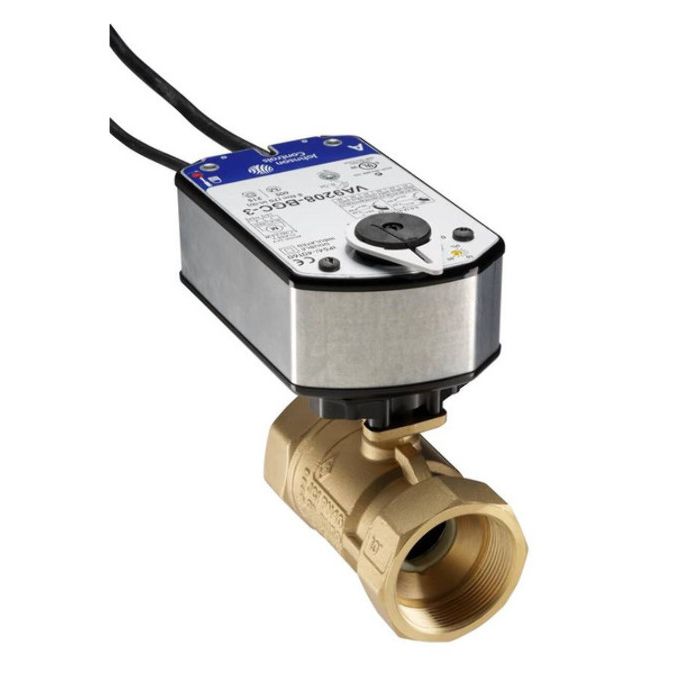

Johnson Controls VG1245EP+958GGC Ball Valve Assembly 2 Way 1-1/2 in.

Product Description

The Johnson Controls VG1245EP+958GGC is a dependable ball valve assembly designed for efficient operation in HVAC systems. This two-way valve features a one and a half inch connection and is suitable for a variety of water and steam applications.

• Maintenance-free design for reliable operation
• Capable of over 200,000 full stroke cycles in contaminated water
• Integrated electric actuator for precise control

Product Highlights

Ideal for both hot water and chilled water, the VG1245EP+958GGC is designed to meet the demands of HVAC professionals.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245EP+958GGC

Technical Specifications

• Flow Coefficient (Cv): 18.7
• Power Supply: 24 VAC
• Spring Return Torque: 70 lb-in
• Operating Temperature Range: -40 F to 140 F
• Electrical Connection: 48 in. 18 AWG Appliance Cable
• Close-Off Pressure: 200 psig
• Service Type: Hot water, chilled water, glycol solution, steam
• Auxiliary Switch: 2 x SPDT
