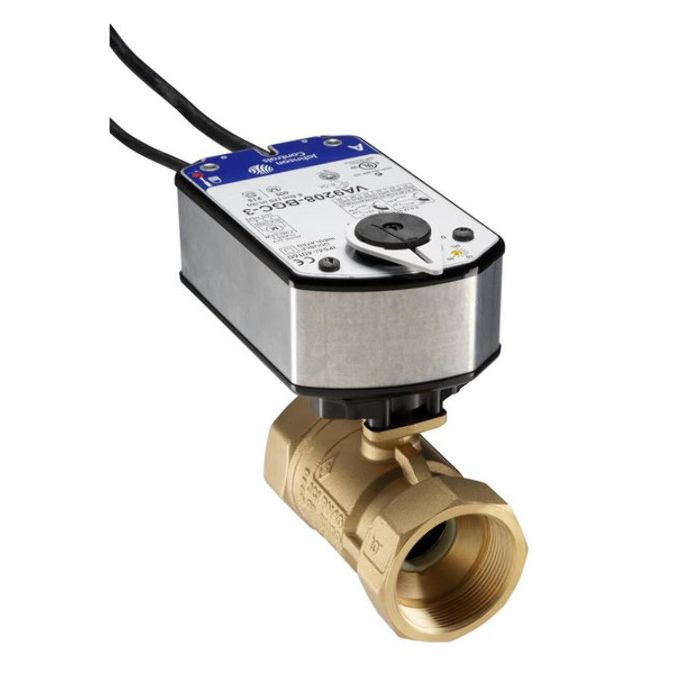

Johnson Controls VG1245EP+948AGA Ball Valve Assembly, 2 Way, 1-1/2 in.

Product Description

The Johnson Controls VG1245EP+948AGA is a ball valve assembly designed for two-way fluid control in HVAC applications. This assembly has properties suitable for managing hot water, chilled water, and glycol solutions. It includes a forged brass body and features a stainless steel ball for longevity and reliability.

• Maintenance-free design
• Effective over 200,000 full stroke cycles
• Direct mount electric actuator included

Product Highlights

This product provides an effective solution for HVAC professionals seeking durable and efficient valve assemblies.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245EP+948AGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solution, and 15 psig saturated steam
• Power Consumption: 7.9 VA running, 5.5 VA holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: -40 F to 140 F (-40 C to 60 C)
• Electrical Connection: 120 in. 19 AWG plenum cable with integral 3/8 in. FMC connectors
