Johnson Controls VG1245EP+938BAC Ball Valve Assembly, 2 Way, 1-1/2 in.

Product Description

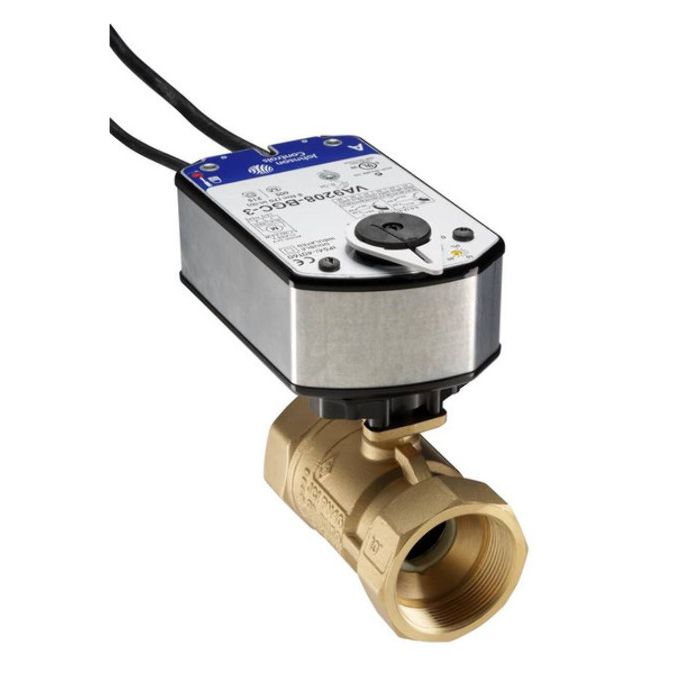

The JOHNSON CONTROLS VG1245EP+938BAC ball valve assembly is a 2-way, 1-1/2 inch valve with NPT connection. It features a forged brass body, stainless steel ball and blowout-proof stem, and a direct mount electric actuator. The valve has a 18.7 Cv, 70 lb-in. spring return, and operates on 85-264 VAC for on/off control.

• Maintenance-Free Design
• Performs Without Failure In Excess Of 200,000 Full Stroke Cycles In Iron-Oxide Contaminated Water
• 500:1 Rangeability

Product Highlights

This valve provides accurate control under all load conditions and is suitable for hot water, chilled water, glycol solutions, and low-pressure steam HVAC systems.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1245EP+938BAC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, And 15 psig Saturated Steam For HVAC Systems
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 0.05 A Running, 0.03 A Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
• CV: 18.7
• Trim: Stainless Steel
• Runtime: 55-71 Secs
• Voltage: 120V
• Actuator: VA9208-BAC-3
• Fail-Safe: Spring Return
• Connection: NPT
• Valve Size: 1.5" - 2-Way
• Nema Rating: Nema 2
• Valve Piping: 2-Way
• Actuator Type: Electric
• Supply Voltage (Nominal): 24 VAC
• Pattern: 2-way
• Size: 1-1/2 in
• Control Signal: Two Position
• Brand: Johnson Controls
• Control Input: On/Off
• Control Valves Type: Ball Valve
• Spring Return: Spring Return
