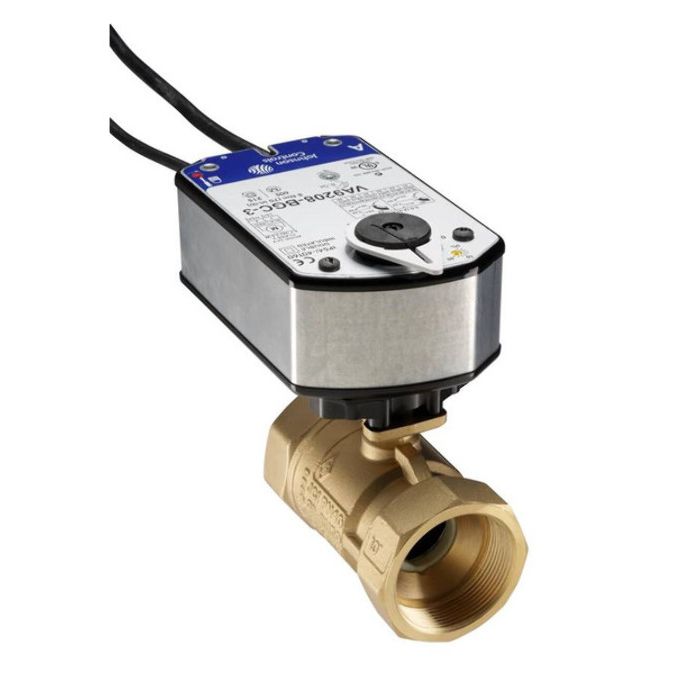

Johnson Controls VG1245EP+928AGA Ball Valve Assembly, 2 Way, 1-1/2 in.

Product Description

The Johnson Controls VG1245EP+928AGA is a two-way ball valve assembly with a size of one and a half inches. This valve features a forged brass body, a stainless steel ball, and a blowout-proof stem. The direct mount electric actuator operates at 24 VAC with a spring return torque of seventy lb-in. It also has a coefficient of flow rating of eighteen point seven (Cv). The valve is designed for HVAC applications, suitable for hot water, chilled water, and glycol solutions. Maintenance is simplified as the design is robust, enabling it to perform effectively in various conditions.

• Maintenance-free design for long-lasting performance
• 200,000 full stroke cycle longevity even in contaminated water
• Compatible with various HVAC systems

Product Highlights

This valve ensures accurate control under all load conditions and operates efficiently in tough environments.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245EP+928AGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F to 140 F (-40 C to 60 C)
• Electrical Connection: 120 in. 19 AWG Plenum Cable With Integral 3/8 in. FMC Connectors
