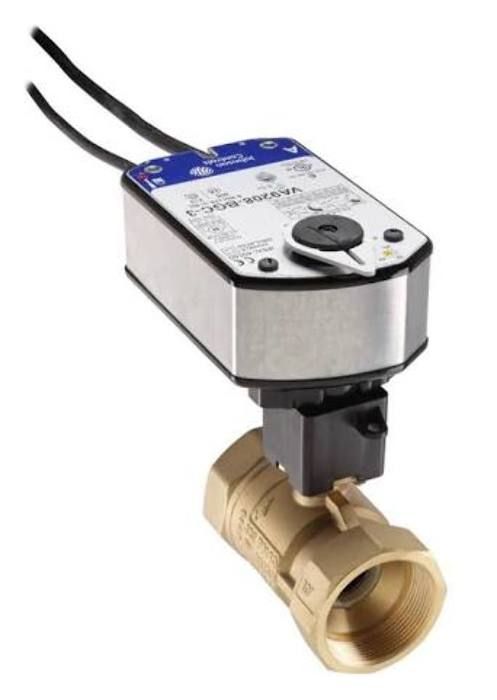

Johnson Controls VG1245DRH948AGA Ball Valve Assembly 2 Way 1-1/4 in.

Product Description

The Johnson Controls VG1245DRH948AGA is a ball valve assembly designed for reliable performance in HVAC systems. This two-way valve has a one and one-fourth inch size, making it suitable for various fluid control applications.

• NPT connection
• 29.2 Cv rating
• Maintenance-free design

Product Highlights

This valve features a forged brass body, stainless steel ball, and a blowout-proof stem. The electric actuator with a spring return operates at 24 VAC and provides floating control. It ensures precise operation in both hot and chilled water systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245DRH948AGA
• Minimum Order Quantity: 1
• Availability: Out of Stock

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, 15 psig Saturated Steam
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F to 140 F
• Electrical Connection: 120 in. 19 AWG Plenum Cable with Integral 3/8 in. FMC Connectors
