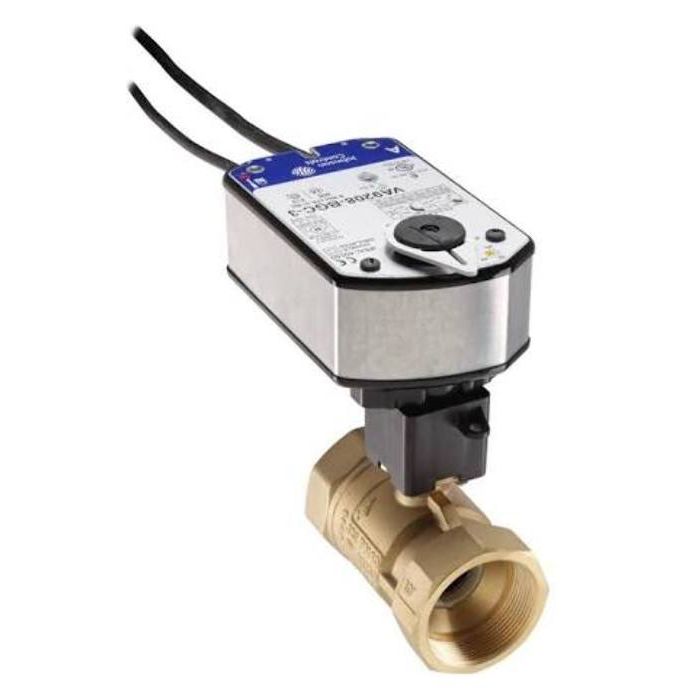

Johnson Controls VG1245DRH938BAC Ball Valve Assembly, 2 Way, 1-1/4 in.

JOHNSON CONTROLS
Brand: JOHNSON CONTROLS
SKU: VG1245DRH938BAC
Availability: Out Of Stock
$487.19
$487.19
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The JOHNSON CONTROLS VG1245DRH938BAC ball valve assembly is a 2-way valve with a 1-1/4 inch NPT connection. It features a forged brass body, stainless steel ball and blowout-proof stem, and an electric actuator with spring return. Operates on 85-264 VAC and has a 29.2 Cv flow coefficient. Designed for HVAC systems using hot water, chilled water, 50/50 glycol solution, and 15 psig saturated steam.

  • Maintenance-Free Design
  • Performs Without Failure In Excess Of 200,000 Full Stroke Cycles In Iron-Oxide Contaminated Water
  • 500:1 Rangeability

Product Highlights

This ball valve assembly provides accurate control under all load conditions and is suitable for various HVAC applications.

Product Information

Standard Information

  • Brand: JOHNSON CONTROLS
  • Manufacturer Part Number: VG1245DRH938BAC
  • Country of Origin: Unknown
Technical Specifications
Housing
NEMA 2, IP54
Service
Hot Water, Chilled Water, 50/50 Glycol Solution, And 15 psig Saturated Steam For HVAC Systems
Auxiliary Switch
2 x SPDT
Power Consumption
0.05 A Running, 0.03 A Holding
Close-Off Pressure
200 psig
Flow Characteristic
Equal Percentage
Operating Conditions
-40 F To 140 F (-40 C To 60 C)
Electrical Connection
48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
CV
29.2
Trim
Stainless Steel
Runtime
55-71 Secs
Voltage
120V
Actuator
VA9208-BAC-3
Assembly
Assembly
Fail-Safe
Spring Return
Connection
NPT
Valve Size
1.25 in
Nema Rating
Nema 2
Valve Piping
2-Way
Close-Off Rating
200 PSI
Product Series
VG1000 Ball Valves
Family Series
Johnson Controls HVAC Valves, VG1000 Ball Valves Series
Description
1-1/4in. 2W Ball Val 29.2Cv; Ss Trim; Hi Temp Linkage;Spring Open; 2 Switches
Capacity
29.2 Cv
Pipe Size
1.25 "
Connection Type
Threaded
Max Close-Off Pressure
200 psi
Max Static Pressure
580 psi
Body Pattern
Two-Way
Valve Style
Ball
Medium Temperature Range
-22-284 °F
Fail-Safe Mode
Spring Normally Open
Comments
High Temperature Linkage
Brand
Johnson Controls
Control Input
On/Off
Control Valves Type
Ball Valve
Spring Return
Spring Return
MPN
VG1245DRH938BAC
Manufacturer
Johnson Controls
