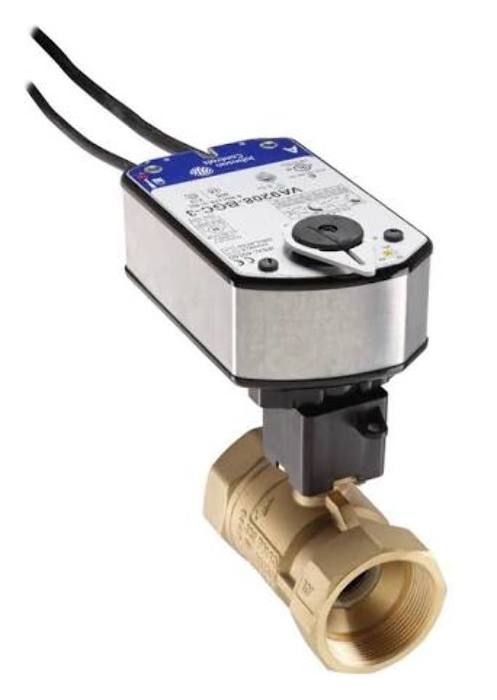

Johnson Controls VG1245DRH928AGA Ball Valve Assembly, 2 Way, 1-1/4 in.

Product Description

The Johnson Controls VG1245DRH928AGA is a two-way ball valve assembly designed for HVAC applications. This valve features a one and one-fourth inch size, making it suitable for various heating and cooling systems.

• Maintenance-free design
• Designed to perform over 200,000 full stroke cycles
• Equipped with an electric actuator and spring return

Product Highlights

This valve provides precise control in hot water, chilled water, and glycol systems while maintaining performance under diverse load conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245DRH928AGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig saturated steam for HVAC systems
• Power Consumption: 7.9 VA running, 5.5 VA holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: -40 F to 140 F (-40 C to 60 C)
• Electrical Connection: 120 inch 19 AWG plenum cable with integral 3/8 inch FMC connectors
