Johnson Controls VG1245DP+958BAC Ball Valve Assembly, 2 Way, 1-1/4 in.

Product Description

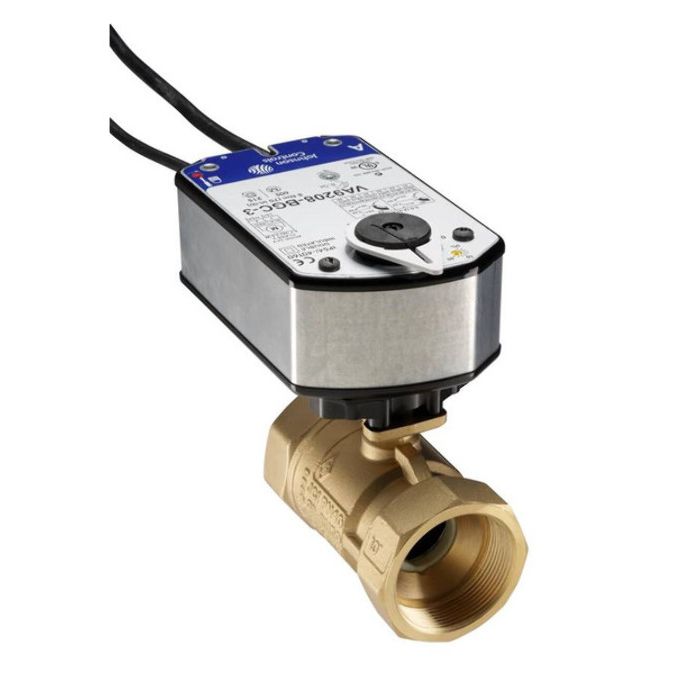

The JOHNSON CONTROLS VG1245DP+958BAC ball valve assembly is a 2-way valve with a 1-1/4 inch NPT connection and a flow coefficient (Cv) of 18.7. It features a forged brass body, stainless steel ball and blowout-proof stem, and a direct mount electric actuator with a 70 lb-in spring return. Operates on 85-264 VAC, on/off.

• Maintenance-Free Design
• Performs Without Failure In Excess Of 200,000 Full Stroke Cycles In Iron-Oxide Contaminated Water
• 500:1 Rangeability

Product Highlights

This valve assembly is designed for fluid flow control in HVAC systems, suitable for hot water, chilled water, glycol solutions, and saturated steam.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1245DP+958BAC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, And 15 psig Saturated Steam For HVAC Systems
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 0.05 A Running, 0.03 A Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
• CV: 18.7
• Trim: Stainless Steel
• Runtime: 55-71 Secs
• Voltage: 120vac
• Actuator: VA9208-BAC-3
• Fail-Safe: Spring Return
• Connection: NPT
• Valve Size: 1.25 in
• Nema Rating: Nema 2
• Valve Piping: 2-Way
• Close-Off Rating: 200 PSI
• Brand: Johnson Controls
• Control Input: On/Off
• Control Valves Type: Ball Valve
• Spring Return: Spring Return
