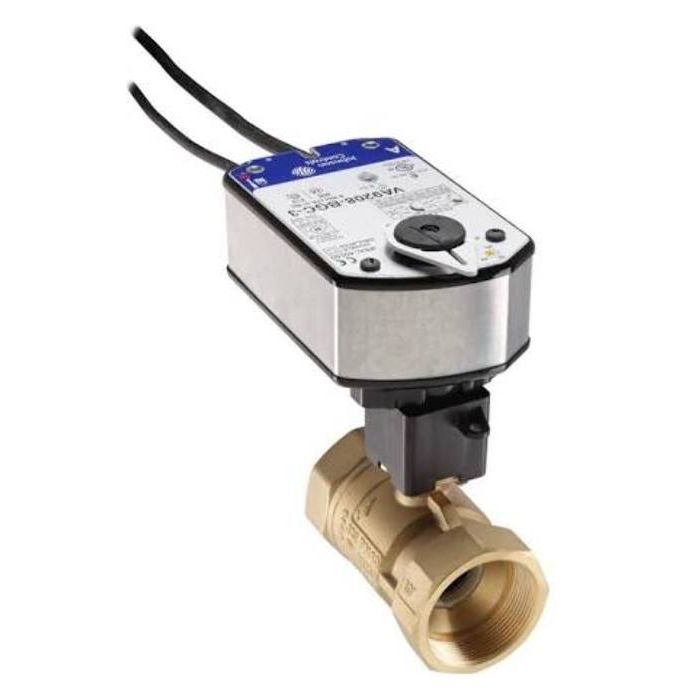

Johnson Controls VG1245DNH958GGC Ball Valve Assembly, 2 Way, 1-1/4 in.

Product Description

The Johnson Controls VG1245DNH958GGC is a two-way ball valve assembly designed for HVAC applications. This valve helps control flow in heating and cooling systems. It features a forged brass body for durability and stainless steel ball for reliable performance. The valve operates with a direct mount electric actuator, suitable for 24 VAC systems.

• 11.7 Cv rating for effective flow control
• Designed for hot water, chilled water, and glycol solutions
• Maintenance-free design with a long service life

Product Highlights

This valve provides accurate control under various load conditions, ensuring efficient operation in multiple HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245DNH958GGC
• Minimum Order Quantity: 1

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Electrical Connection: 48 in. 18 AWG Appliance Cable with Integral 3/8 in. FMC Connectors
• Operating Conditions: -40 F to 140 F (-40 C to 60 C)
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Auxiliary Switch: 2 x SPDT
