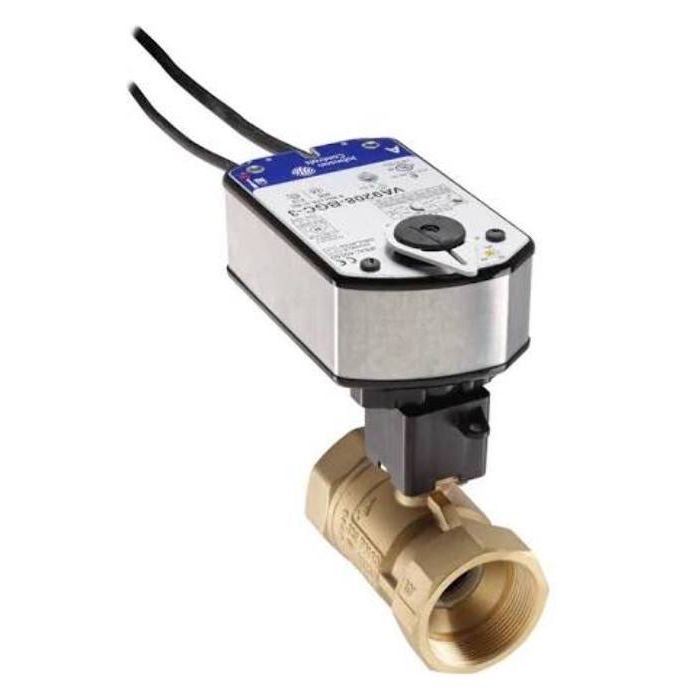

Johnson Controls VG1245DNH938GGC Ball Valve Assembly, 2 Way, 1-1/4 in.

Product Description

The Johnson Controls VG1245DNH938GGC is a two-way ball valve assembly with a size of one and one-quarter inches. This valve features a forged brass body and a stainless steel ball for durability in HVAC applications.

• Designed for NPT connections
• Operates in hot water, chilled water, and glycol solutions
• Maintenance-free with over 200,000 full stroke cycles in contaminated water

Product Highlights

This product is ideal for reliable control and efficiency in various HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245DNH938GGC

Technical Specifications

• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
• Auxiliary Switch: 2 x SPDT
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, And 15 psig Saturated Steam For HVAC Systems
• Housing: NEMA 2, IP54
