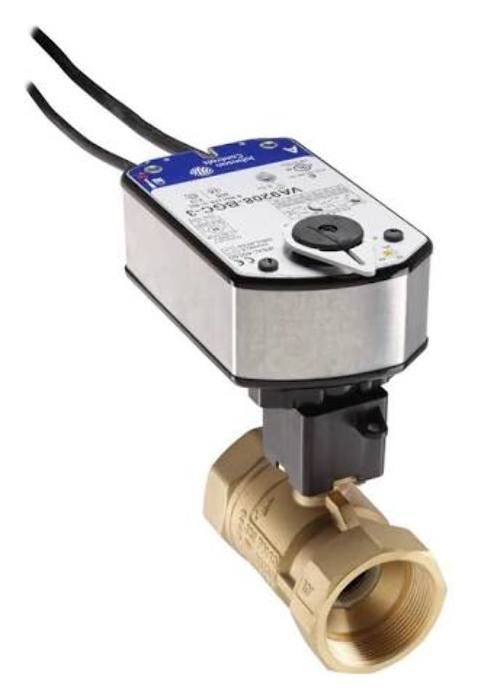

Johnson Controls VG1245DNH938BGA Ball Valve Assembly, 2 Way, 1-1/4 in.

Product Description

The Johnson Controls VG1245DNH938BGA is a two-way ball valve assembly designed for HVAC applications. This product features a one and one-quarter inch connection and is suitable for various fluid types.

• Maintenance-Free Design
• Direct Mount Electric Actuator
• Operates at ±40°F to 140°F

Product Highlights

This valve provides reliable operation in demanding conditions, making it ideal for use in hot water, chilled water, and glycol solutions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245DNH938BGA

Technical Specifications

• Power Consumption: 6.1 VA Running, 1.2 VA Holding
• Close-Off Pressure: 200 psig
• Operating Conditions: -40°F to 140°F
• Flow Characteristic: Equal Percentage
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam for HVAC Systems
• Electrical Connection: 48 in. 18 AWG Appliance Cable with Integral 3/8 in. FMC Connectors
• Housing: NEMA 2, IP54
