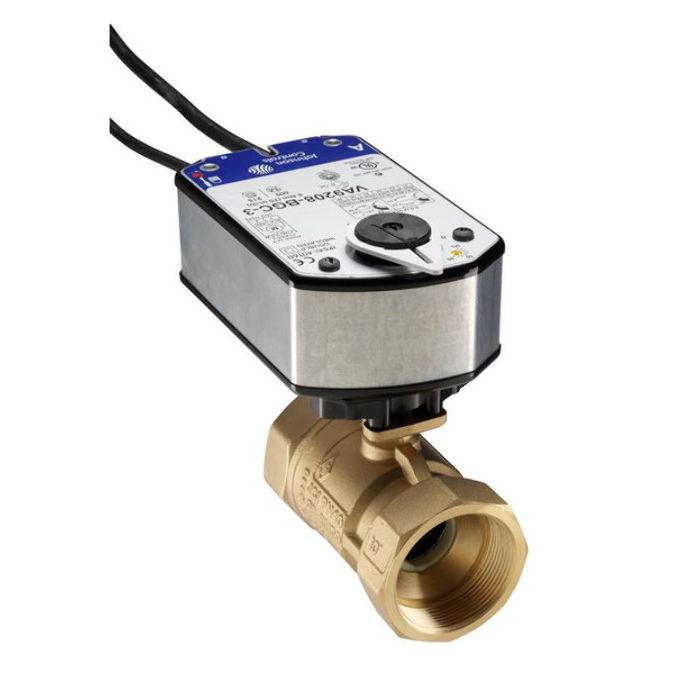

Johnson Controls VG1245DN948AGA Ball Valve Assembly 2 Way 1-1/4 in.

Product Description

The Johnson Controls VG1245DN948AGA is a two-way ball valve assembly designed for various HVAC applications. This valve has a size of one and one-fourth inches and operates with a direct mount electric actuator. It is suited for controlling the flow of hot water, chilled water, glycol solutions, and steam.

• Maintenance-free design ensures durability.
• Offers a flow characteristic that is equal percentage for accurate control.
• Rated for extreme conditions from minus forty Fahrenheit to one hundred forty Fahrenheit.

Product Highlights

The product supports a connectivity option of a twelve-inch plenum cable with integrated connectors. This is essential for reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: VG1245DN948AGA

Technical Specifications

• Close-Off Pressure: 200 psig
• Power Consumption: 7.9 VA running, 5.5 VA holding
• Operating Conditions: -40 F to 140 F (-40 C to 60 C)
• Flow Characteristic: Equal Percentage
• Housing: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solution, and 15 psig saturated steam
• Electrical Connection: 120 in. 19 AWG plenum cable with integral 3/8 in. FMC connectors
• Stroke Cycles: Performs reliably for over 200,000 full stroke cycles in contaminated water
