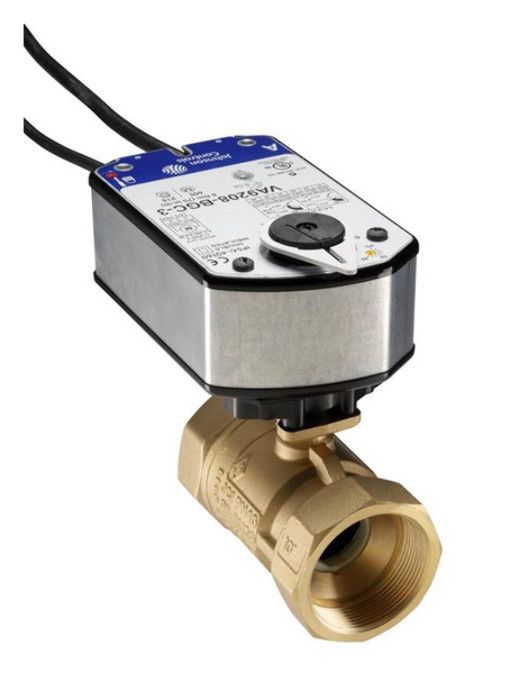

Johnson Controls VG1245DN+958GGC Ball Valve Assembly, 2 Way, 1-1/4 in.

Product Description

Johnson Controls VG1245DN+958GGC is a two-way ball valve assembly designed for HVAC applications. This valve features a one and one-fourth inch size and operates on 24 VAC. It includes a stainless steel ball and a blowout-proof stem, ensuring durability and safety in operation.

• Provides maintenance-free design for long-term performance
• Designed to operate efficiently in conditions of contaminated water
• Supports a wide range of controlling motion with accurate feedback

Product Highlights

The VG1245DN+958GGC valve is suitable for hot water, chilled water, and glycol solutions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245DN+958GGC

Technical Specifications

• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam
• Auxiliary Switch: 2 x SPDT
• Electrical Connection: 48 in. 18 AWG Appliance Cable with Integral 3/8 in. FMC Connectors
• Housing: NEMA 2, IP54
