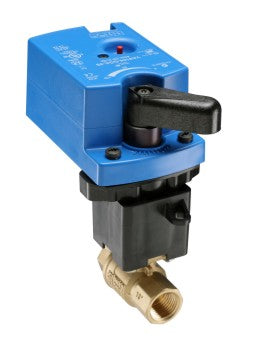

Johnson Controls VG1245CLH9T4GGA Ball Valve Assembly, 2 Way, 1 in.

Product Description

The Johnson Controls VG1245CLH9T4GGA is a two-way ball valve assembly designed for HVAC systems. It has a one inch size and features a direct mount electric actuator. The valve is suitable for use in hot water, chilled water, and glycol solutions.

• Compact design with NPT connections
• Constructed of forged brass and includes a stainless steel ball
• Provides a flow coefficient of 7.4 Cv

Product Highlights

This product provides accurate control for various load conditions with a rangeability of 500:1.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245CLH9T4GGA

Technical Specifications

• Housing: NEMA 1, IP40
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam for HVAC Systems
• Power Consumption: 2.9 VA
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -4 F to 140 F (-20 C to 60 C)
• Electrical Connection: M3 Screw Terminals
