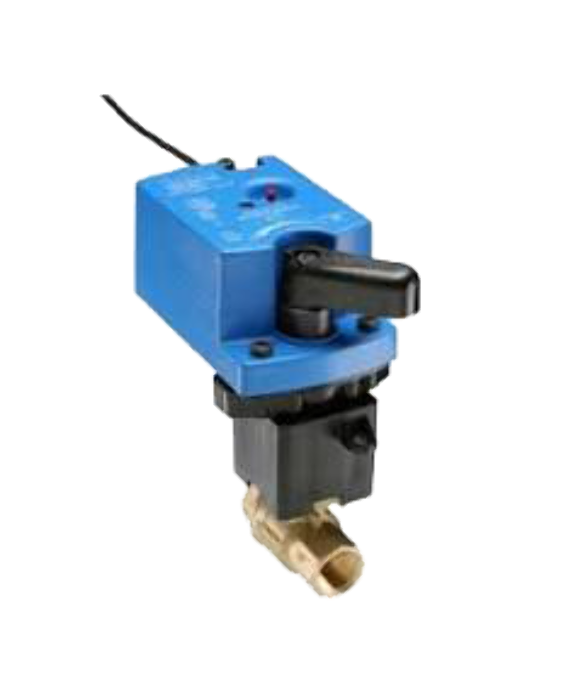

Johnson Controls VG1245CLH9T4AGA Ball Valve Assembly, 2 Way, 1 in.

Product Description

The Johnson Controls VG1245CLH9T4AGA is a two-way ball valve assembly designed for HVAC systems. This valve features a one-inch connection and is suitable for hot and chilled water applications.

• NPT connections
• Direct mount electric actuator
• Durable forged brass body

Product Highlights

This ball valve assembly offers precise control with a flow coefficient of 7.4 Cv. It operates on a 24 VAC input and supports on/off or floating functions without timeout.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1245CLH9T4AGA

Technical Specifications

• Housing: NEMA 1, IP40
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam for HVAC Systems
• Power Consumption: 2.3 VA
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -4 F to 140 F (-20 C to 60 C)
• Electrical Connection: M3 Screw Terminals
