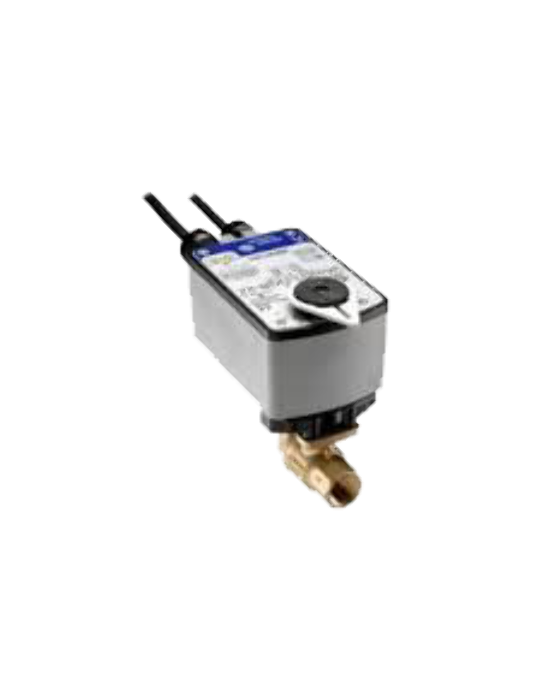

Johnson Controls VG1245CLH923AGB Ball Valve Assembly 2 Way 1 in.

Product Description

The Johnson Controls VG1245CLH923AGB is a ball valve assembly designed for two-way applications. This valve features a one-inch NPT connection and a maintenance-free design that ensures reliability throughout its operational life.

• NPT connection size: one inch
• Flow coefficient: 7.4 Cv
• Direct mount electric actuator compatible

Product Highlights

Built for hot water, chilled water, and low-pressure steam applications, this valve is suitable for HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245CLH923AGB

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solution, and 15 psig saturated steam for HVAC systems
• Auxiliary Switch: 1 x SPDT
• Power Consumption: 5.1 VA running, 2.8 VA holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: -22 F to 140 F (-30 C to 60 C)
• Electrical Connections: 48 in. 18 AWG appliance cables with integral 3/8 in. FMC connectors
