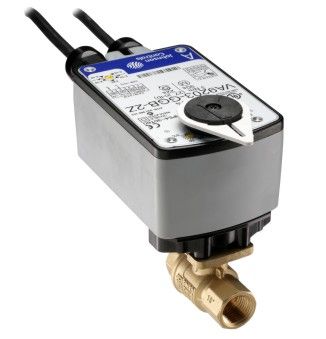

Johnson Controls VG1245CL+943GGB Ball Valve Assembly 2 Way 1 in.

Product Description

The Johnson Controls VG1245CL+943GGB is a two-way ball valve assembly designed for effective flow control in HVAC applications. This valve features a one-inch size and is built to endure tough conditions. It includes a direct mount electric actuator, offering efficient operation with a spring return capability.

• Maintenance-free design
• Handles over 200,000 full stroke cycles
• Accurate control under varying load conditions

Product Highlights

The Johnson Controls VG1245CL+943GGB is suitable for use with hot water, chilled water, glycol solutions, and saturated steam. Its robust construction ensures long-lasting performance, making it ideal for HVAC control systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245CL+943GGB

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solution, 15 psig saturated steam
• Auxiliary Switch: 1 x SPDT
• Power Consumption: 5.1 VA running, 2.8 VA holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: -22 F to 140 F
• Electrical Connection: 48 in. 18 AWG appliance cables
