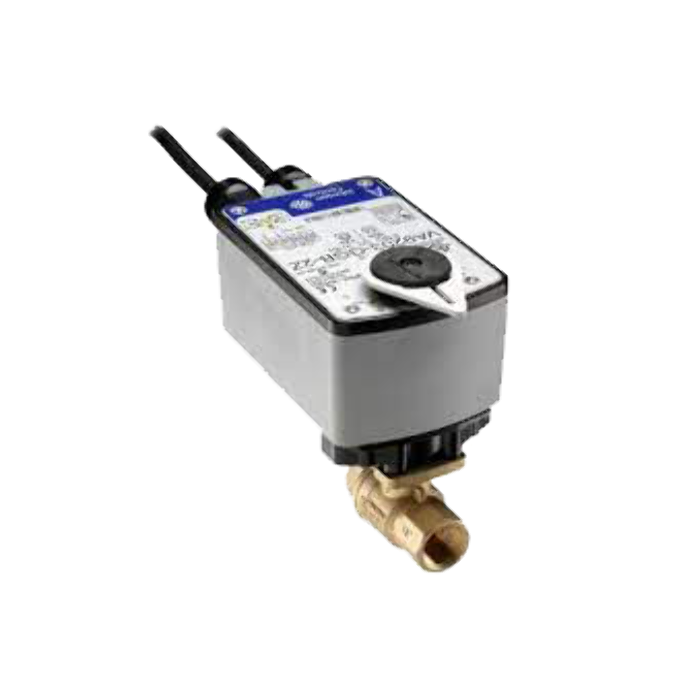

Johnson Controls VG1245CL+943AGB Ball Valve Assembly, 2 Way, 1 in.

Product Description

The Johnson Controls VG1245CL+943AGB is a two-way ball valve assembly designed for efficient control in HVAC systems. This product features a durable forged brass body with stainless steel components, ensuring longevity and reliability. The valve operates on a standard voltage of 24 VAC and has a spring return functionality with a torque of 27 lb-in.

• Maintenance-free design
• Handles hot water, chilled water, and steam applications
• Rated at 7.4 Cv

Product Highlights

This valve operates effectively with iron-oxide contaminated water and provides accurate control under various load conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245CL+943AGB

Technical Specifications

• Service: Hot water, chilled water, 50/50 glycol solution, 15 psig saturated steam
• Operating Conditions: -22 F to 140 F (-30 C to 60 C)
• Close-Off Pressure: 200 psig
• Power Consumption: 5.1 VA running, 2.8 VA holding
• Flow Characteristic: Equal percentage
• Auxiliary Switch: 1 x SPDT
• Electrical Connections: 48 in. 18 AWG appliance cables with connectors
• Housing: NEMA 2, IP54
