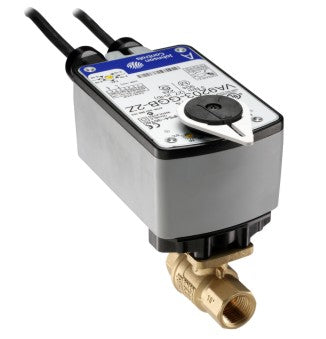

Johnson Controls VG1245CL 2 Way Ball Valve Assembly 1 in.

Product Description

The Johnson Controls VG1245CL+923AGA is a two-way ball valve assembly designed for efficient control in HVAC systems. This product features a one-inch connection and is suitable for both hot and chilled water applications. The forged brass body enhances durability while the stainless steel ball guarantees reliable performance.

• Maintenance-free design
• Handles iron-oxide contaminated water without failure
• 200,000 full stroke cycles under normal conditions

Product Highlights

This ball valve assembly provides accurate control under various load conditions and is ideal for use in HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245CL+923AGA
• Service: Hot water, chilled water, 50/50 glycol, and steam

Technical Specifications

• Flow Characteristic: Equal Percentage
• Power Consumption: 5.1 VA running, 2.8 VA holding
• Close-Off Pressure: 200 psig
• Operating Conditions: -22 F to 140 F
• Electrical Connections: 120 in. 19 AWG plenum cable
• Housing: NEMA 2, IP54
