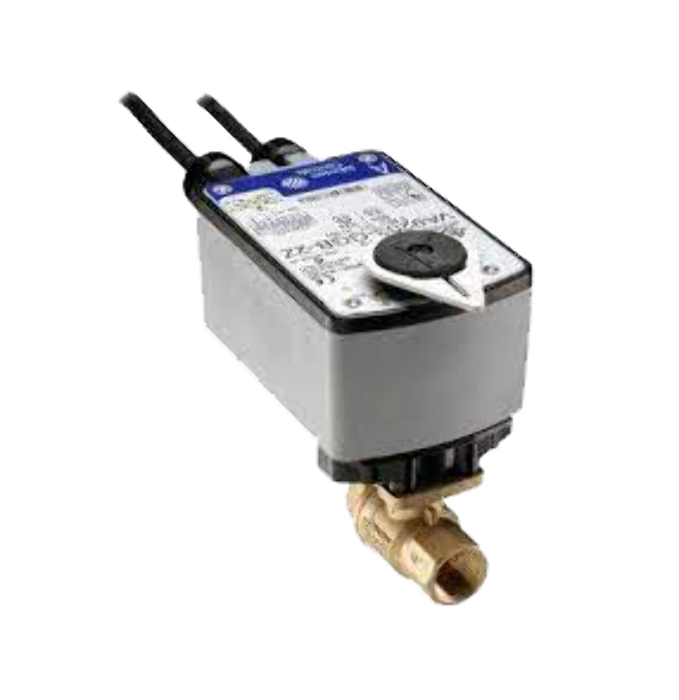

Johnson Controls VG1245CL 2 Way Ball Valve Assembly 1 in.

Product Description

The Johnson Controls VG1245CL+943BUA is a ball valve assembly designed for use in HVAC applications. This 2-way valve has a one-inch size and features an NPT connection. It allows for the efficient control of water flow in various systems.

• Forged brass body with stainless steel ball
• Direct mount electric actuator with spring return
• Compatible with hot water, chilled water, and glycol solutions

Product Highlights

This product is built for reliability and longevity, capable of exceeding 200,000 full stroke cycles.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• Part Number: VG1245CL+943BUA

Technical Specifications

• Power Consumption: 0.06 Amp Running, 0.02 Amp Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 140 F (-30 C To 60 C)
• Electrical Connections: 48 in. 18 AWG Appliance Cables With Integral 3/8 in. FMC Connectors
• Housing Rating: NEMA 2, IP54
• Service Compatibility: Hot Water, Chilled Water, 50/50 Glycol Solution, And 15 psig Saturated Steam
