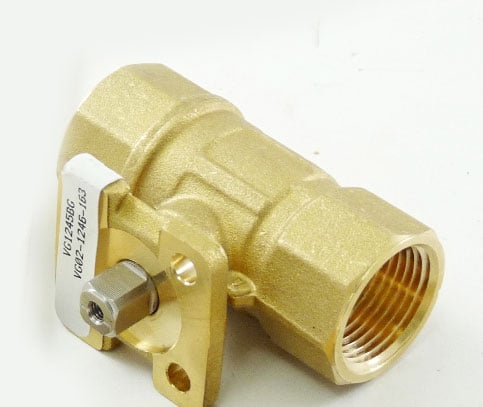

Johnson Controls VG1245BGH9T4IGA Ball Valve Assembly, 2 Way, 3/4 in.

Product Description

The Johnson Controls VG1245BGH9T4IGA is a ball valve assembly designed for two-way applications with a three-fourth inch size. This assembly is suitable for HVAC systems, featuring a forged brass body and stainless steel ball. It has a direct mount electric actuator with a non-spring return and operates on 24 VAC power. This unit can switch between on/off and floating modes with timeout capabilities.

• 4.7 Cv flow coefficient for effective fluid control
• Suitable for various HVAC applications including hot and chilled water systems
• NEMA 1 enclosure rating for protection in indoor environments

Product Highlights

This ball valve is built to offer precise control under all load conditions and features a robust design that ensures durability and reliability in demanding environments.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245BGH9T4IGA

Technical Specifications

• Power Consumption: 3.0 VA
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -4 F to 140 F (-20 C to 60 C)
• Electrical Connection: M3 Screw Terminals
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam for HVAC Systems
