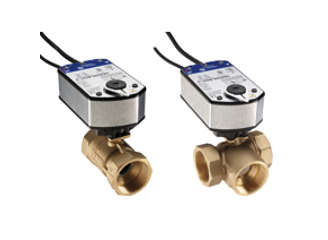

Johnson Controls VG1245BGH943AGA Ball Valve Assembly 2 Way 3/4 in.

Product Description

The Johnson Controls VG1245BGH943AGA is a two-way ball valve assembly designed for efficient fluid control. It features a forged brass body and a stainless steel ball, which enhance durability and reliability. This valve operates with a direct mount electric actuator that provides a spring return function. Suitable for HVAC applications, it is capable of handling hot water, chilled water, glycol solutions, and steam.

• Maintenance-free design for prolonged operation.
• Achieves more than 200,000 full stroke cycles in various water conditions.
• 500:1 rangeability ensures precise control across all load conditions.

Product Highlights

Simple installation with standard wiring and high performance in demanding environments.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245BGH943AGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam for HVAC Systems
• Power Consumption: 5.1 VA Running, 2.8 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F to 140 F (-30 C to 60 C)
• Electrical Connections: 120 inches 19 AWG Plenum Cable with Integral 3/8 inches FMC Connectors
