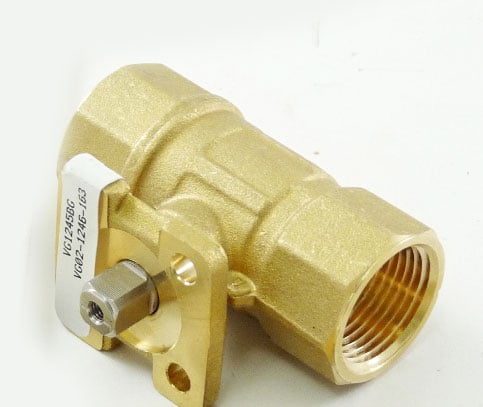

Johnson Controls VG1245BGH923AGA Ball Valve Assembly 2 Way 3/4 in. Replacement MPN

Product Description

The Johnson Controls VG1245BGH923AGA is a two-way ball valve assembly suitable for various HVAC systems. This model features a three-quarter inch size and is designed for reliable performance in demanding conditions.

• Maintenance-free design for long-lasting operation.
• Performs without failure in excess of 200,000 full stroke cycles.
• Suitable for hot water, chilled water, and 50/50 glycol solutions.

Product Highlights

This ball valve assembly is built for efficiency and durability, ensuring accurate control in different load situations.

Product Information

Standard Information

• Brand: Johnson Controls
• Product Name: Ball Valve Assembly, 2 Way, 3/4 in.

Technical Specifications

• Power Consumption: 5.1 VA Running, 2.8 VA Holding
• Operating Conditions: -22 F to 140 F (-30 C to 60 C)
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Electrical Connections: 120 in. 19 AWG Plenum Cable with Integral 3/8 in. FMC Connectors
• Service: Hot Water, Chilled Water, and Steam for HVAC Systems
• Housing: NEMA 2, IP54
