Johnson Controls VG1245BG Ball Valve Assembly 2 Way 3/4 in. VG1245BG+9T4IGA

Product Description

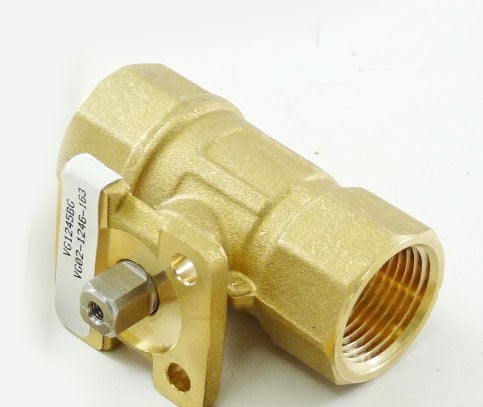

The Johnson Controls VG1245BG+9T4IGA is a two-way ball valve assembly designed for HVAC systems. This assembly features a three-quarter inch connection and is built with a forged brass body. It includes a stainless steel ball and a blowout-proof stem. The valve supports a direct mount electric actuator for simplified operation.

• Two-way design for versatile applications.
• Compatible with hot water, chilled water, and glycol solutions.
• Flow characteristic is equal percentage for smooth operation.

Product Highlights

This valve assembly provides reliable control under various load conditions, making it suitable for diverse HVAC applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245BG+9T4IGA

Technical Specifications

• Power Consumption: 3.0 VA
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -4 F to 140 F (-20 C to 60 C)
• Electrical Connection: M3 Screw Terminals
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam
• Housing: NEMA 1, IP40
