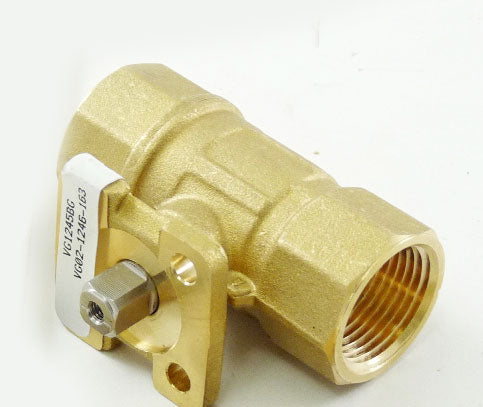

Johnson Controls VG1245BG+9T4GGA Ball Valve Assembly, 2 Way, 3/4 in.

Product Description

The Johnson Controls VG1245BG+9T4GGA is a 2-way ball valve assembly designed for efficient fluid control. This assembly features a three-fourths inch size and is constructed for durability. It integrates a direct mount electric actuator with a non-spring return mechanism.

• Service Conditions: Designed for hot water, chilled water, and compatible with up to 50/50 glycol solutions.
• Flow Characteristic: Offers equal percentage flow characteristics for precision in temperature control.
• Power Requirements: Operates at 24 VAC with proportional control across a 0 to 10 VDC range.

Product Highlights

This ball valve assembly ensures reliable performance in various HVAC applications and is suitable for residential and commercial setups.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245BG+9T4GGA

Technical Specifications

• Flow Capacity: 4.7 Cv
• Close-Off Pressure: 200 psig
• Power Consumption: 2.9 VA
• Operating Conditions: -4 F to 140 F (-20 C to 60 C)
• Electrical Connection: M3 screw terminals
• Body Material: Forged brass
• Ball Material: Stainless steel
• Stem Design: Blowout-proof
