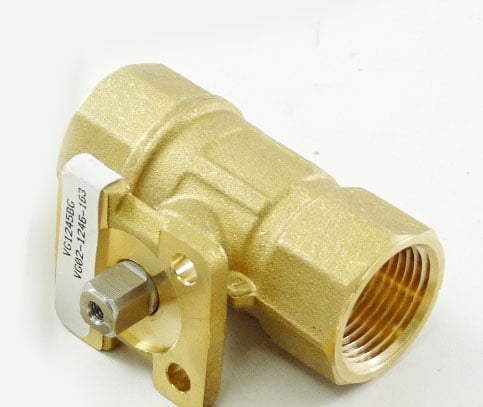

Johnson Controls VG1245BG+9A4AGA Ball Valve Assembly 2 Way 3/4 in.

Product Description

The Johnson Controls VG1245BG+9A4AGA is a ball valve assembly designed for HVAC systems. This valve features a two-way design with a size of three-quarters of an inch. It has a forged brass body, a stainless steel ball, and a blowout-proof stem. This assembly is compatible with direct mount electric actuators and operates on 24 VAC.

• NPT connection with a flow capacity of 4.7 Cv.
• Equipped with a non-spring return actuator providing 35 lb-in of torque.
• Applicable for hot water, chilled water, and glycol solutions.

Product Highlights

This valve is built for accurate control in various load conditions, making it ideal for HVAC service applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245BG+9A4AGA

Technical Specifications

• Housing: NEMA 2, IP42
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam
• Power Consumption: 2.3 VA
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -4 F to 140 F (-20 C to 60 C)
• Electrical Connection: 48 in. UL 444 Type CMP Plenum Rated Cable
