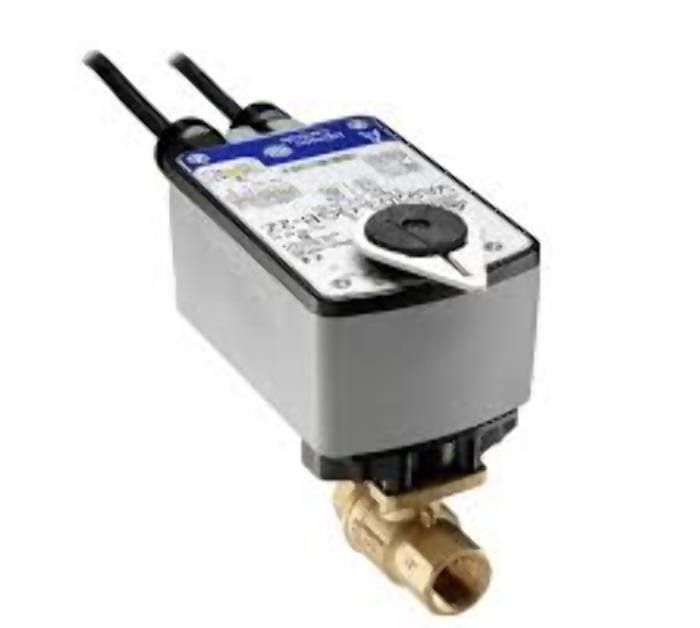

Johnson Controls VG1245BG+943BUB Ball Valve Assembly, 2 Way, 3/4 in.

Product Description

The Johnson Controls VG1245BG+943BUB is a ball valve assembly designed for reliable control in HVAC systems. It features a two-way design that allows precise flow management. This valve is appropriate for applications involving hot and chilled water, as well as glycol solutions. It is suitable for various load conditions, making it versatile for multiple HVAC setups.

• Maintenance-free design for long-lasting use.
• Performance exceeds 200,000 full stroke cycles in contaminated water.
• Offers a 500:1 rangeability for accurate flow control.

Product Highlights

This valve operates on 85 to 264 VAC with a spring return feature. Its forged brass body and stainless-steel ball ensure durability in demanding environments.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245BG+943BUB

Technical Specifications

• Weight: 27 lb-in spring return
• Close-Off Pressure: 200 psig
• Operating Conditions: -22 F to 140 F (-30 C to 60 C)
• Electrical Connections: 48 in. 18 AWG appliance cables with integral 3/8 in. FMC connectors
• Flow Characteristic: Equal percentage
• Auxiliary Switch: 1 x SPDT
• Power Consumption: 0.06 Amp running, 0.02 Amp holding
• NEMA Rating: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solution, and 15 psig saturated steam for HVAC systems
