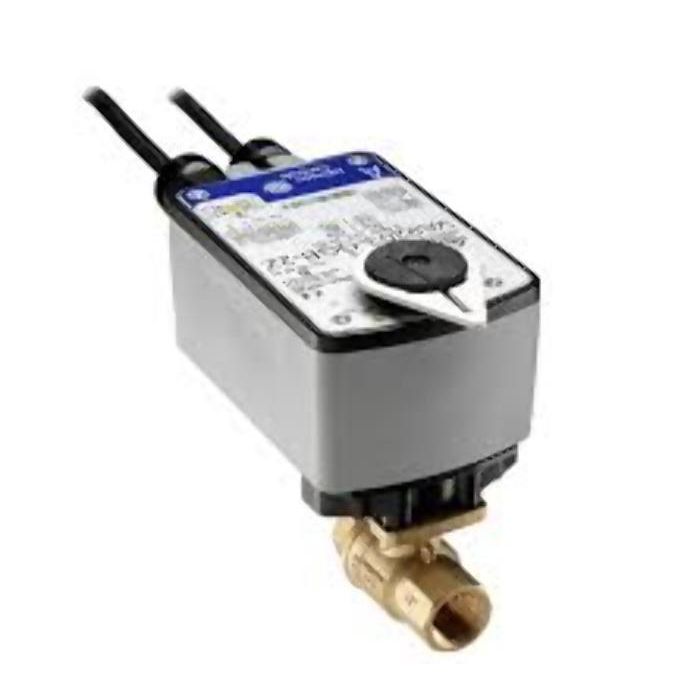

Johnson Controls VG1245BG Ball Valve Assembly 2 Way 3/4 in.

Product Description

The Johnson Controls VG1245BG+943BGB is a two-way ball valve assembly designed for HVAC applications. This valve features a three-quarter-inch size and offers reliable performance in various environments.

• Maintenance-free design ensuring long-term use
• Built for hot water, chilled water, and glycol solutions
• Direct mount electric actuator with spring return

Product Highlights

The valve assembly maintains a Cv of 4.7 and operates efficiently under various load conditions. It is ideal for controlled environments and helps provide accurate flow regulation.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: VG1245BG+943BGB

Technical Specifications

• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam
• Power Consumption: 5.0 VA Running, 2.5 VA Holding
• Operating Conditions: -22 F to 140 F (-30 C to 60 C)
• Flow Characteristic: Equal Percentage
• Close-Off Pressure: 200 psig
• Electrical Connections: 48 in. 18 AWG Appliance Cables with Integral 3/8 in. FMC Connectors
• Auxiliary Switch: 1 x SPDT
• Dimensions: NEMA 2, IP54 rated housing
