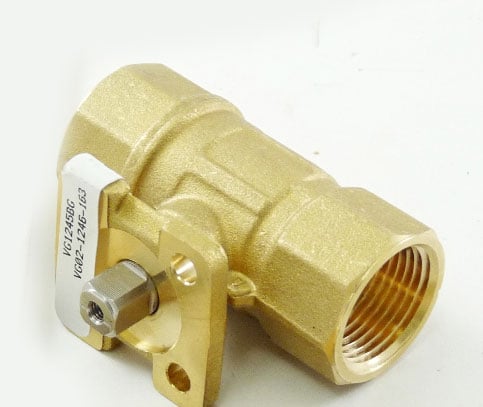

Johnson Controls VG1245BG+943BGA Ball Valve Assembly 2 Way 3/4 in.

Product Description

The Johnson Controls VG1245BG+943BGA is a two-way ball valve assembly designed for HVAC applications. This valve features a nominal pipe size of three-fourths inches and utilizes a direct mount electric actuator for efficient operation.

• Maintenance-free design ensures prolonged usage.
• Handles iron-oxide contaminated water with over 200,000 full stroke cycles.
• Equipped with a stainless steel ball and blowout-proof stem for durability.

Product Highlights

This ball valve assembly is ideal for controlling flow in various HVAC systems. It is engineered for hot and chilled water, glycol solutions, and saturated steam applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245BG+943BGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solution, and 15 psig saturated steam
• Power Consumption: 5.0 VA running, 2.5 VA holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: -22 F to 140 F (-30 C to 60 C)
• Electrical Connections: 48 in. 18 AWG appliance cables with integral 3/8 in. FMC connectors
