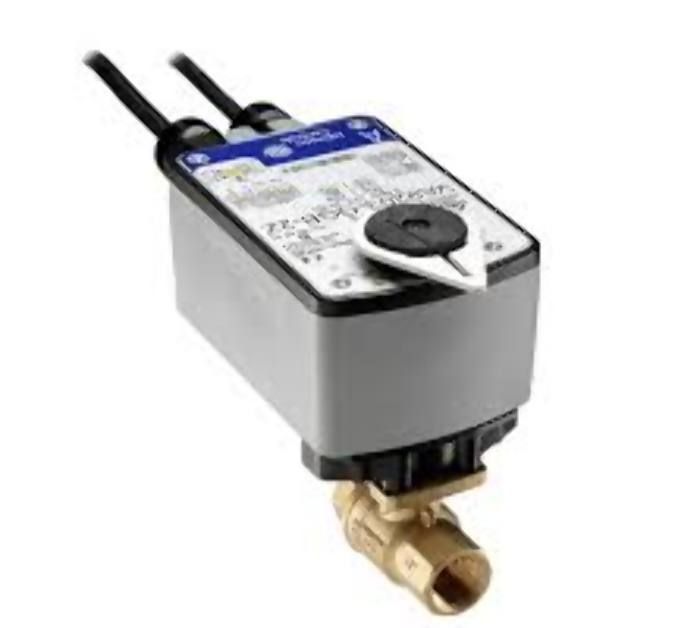

Johnson Controls VG1245BG+943AGB Ball Valve Assembly 2 Way 3/4 in.

Product Description

The Johnson Controls VG1245BG+943AGB is a two-way ball valve assembly designed for HVAC control systems. It features a three-quarter inch size and is built from forged brass with a stainless steel ball. This valve is equipped with a direct mount electric actuator, ensuring efficient operation. It operates at 24 volts AC and has a 27 lb-in spring return for reliability.

• Maintenance-free design
• Performs reliably in contaminated water
• 200,000 full stroke cycles without failure

Product Highlights

This valve assembly offers accurate flow control and is suitable for various HVAC applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245BG+943AGB

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, and 15 psig Saturated Steam
• Auxiliary Switch: 1 x SPDT
• Power Consumption: 5.1 VA running, 2.8 VA holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F to 140 F (-30 C to 60 C)
• Electrical Connections: 48 in. 18 AWG appliance cables with integral 3/8 in. FMC connectors
