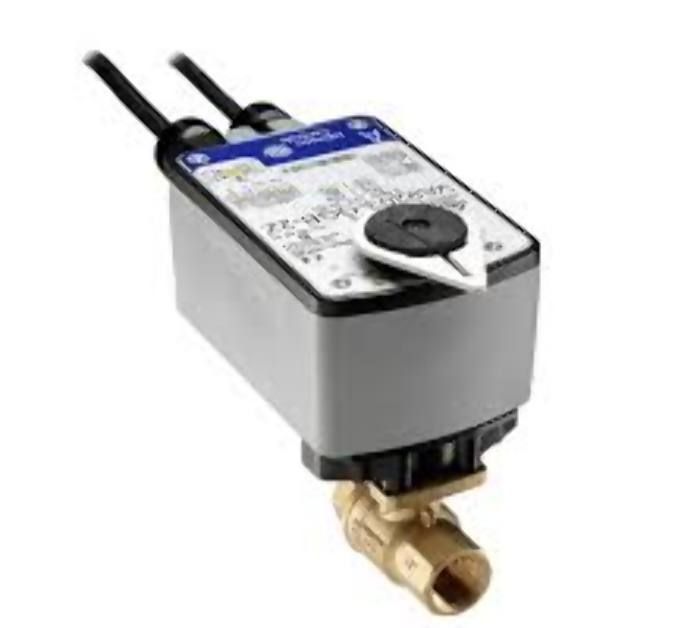

Johnson Controls VG1245BG+923GGB Ball Valve Assembly 2 Way 3/4 in. Replacement MPN

Product Description

The Johnson Controls VG1245BG+923GGB is a two-way ball valve assembly designed for reliable operation in HVAC systems. This valve features a three-quarter inch size and is built to perform efficiently in various fluid conditions.

• Maintenance-free design
• Suitable for hot water and chilled water applications
• Equipped with a direct mount electric actuator

Product Highlights

This product is ideal for controlling the flow in heating and cooling systems. It maintains reliable performance even in challenging environments, making it a robust choice for HVAC professionals.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245BG+923GGB

Technical Specifications

• Flow Coefficient (Cv): 4.7
• Close-Off Pressure: 200 psig
• Power Consumption: 5.1 VA running, 2.8 VA holding
• Operating Conditions: -22°F to 140°F (-30°C to 60°C)
• Auxiliary Switch: 1 x SPDT
• Electrical Connection: 48 inches 18 AWG appliance cables with integral 3/8 inches FMC connectors
• Service Compatibility: Hot water, chilled water, 50/50 glycol solution, and 15 psig saturated steam for HVAC systems
• Housing Rating: NEMA 2, IP54
