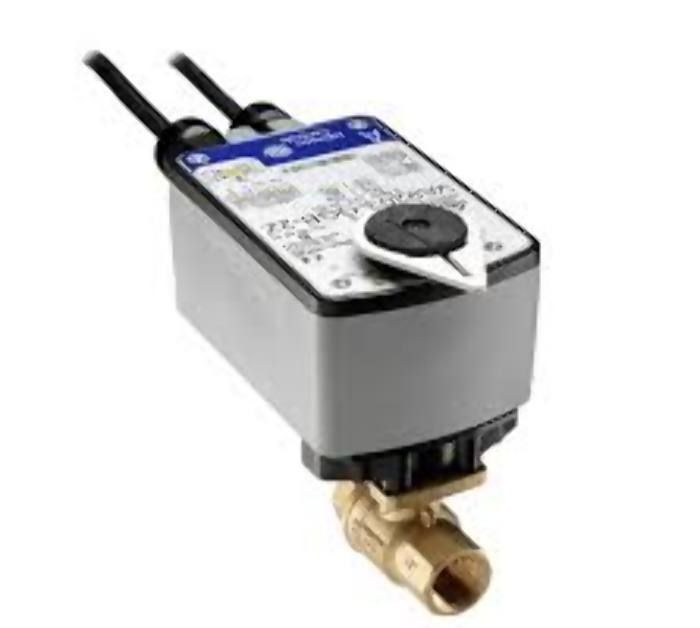

Johnson Controls VG1245BG+923BGA Ball Valve Assembly 2 Way 3/4 in.

Product Description

The Johnson Controls VG1245BG+923BGA is a two-way ball valve assembly designed for HVAC systems. This valve features a three-quarter inch size and is suitable for various applications, including hot water, chilled water, and steam. It operates with a direct mount electric actuator providing a spring return of twenty-seven pound-inches and works with a twenty-four VAC system.

• Maintenance-free design for long-lasting performance.
• Four point seven Cv value for efficient fluid control.
• Constructed with a forged brass body and stainless steel ball for durability.

Product Highlights

This ball valve assembly ensures reliable operation with over two hundred thousand full stroke cycles in challenging conditions, such as iron-oxide contaminated water.

Product Information

Standard Information

• Brand: Johnson Controls
• Category: HVAC Control Components

Technical Specifications

• Power Consumption: 5.0 VA Running, 2.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 140 F (-30 C To 60 C)
• Electrical Connections: 48 in. 18 AWG Appliance Cables With Integral 3/8 in. FMC Connectors
• Housing: NEMA 2, IP54
• Service: Compatible with hot water, chilled water, 50/50 glycol solution, and 15 psig saturated steam.
