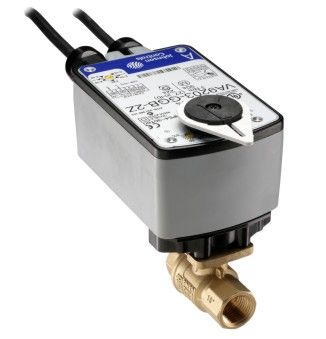

Johnson Controls VG1245BG + 923AGB Ball Valve Assembly, 2 Way, 3/4 in.

Product Description

The Johnson Controls VG1245BG+923AGB is a two-way ball valve assembly designed for HVAC applications. This valve is suitable for various fluid types and provides reliable operation. It features a forged brass body, a stainless steel ball, and a blowout-proof stem. The actuator is designed for direct mounting, ensuring stability and optimal performance.

• Maintenance-Free Design
• Performs Over 200,000 Full Stroke Cycles in Contaminated Water
• Rangeability of 500:1 for Precise Control

Product Highlights

Ideal for hot water and chilled water applications, this valve can handle a range of pressures and temperatures.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1245BG+923AGB

Technical Specifications

• Service: Hot Water, Chilled Water, 50/50 Glycol, 15 psig Steam
• Close-Off Pressure: 200 psig
• Power Consumption: 5.1 VA Running, 2.8 VA Holding
• Operating Conditions: -22 F to 140 F (-30 C to 60 C)
• Electrical Connections: 48 in. 18 AWG with 3/8 in. FMC Connectors
• Auxiliary Switch: 1 x SPDT
• Flow Characteristic: Equal Percentage
• Housing: NEMA 2, IP54
