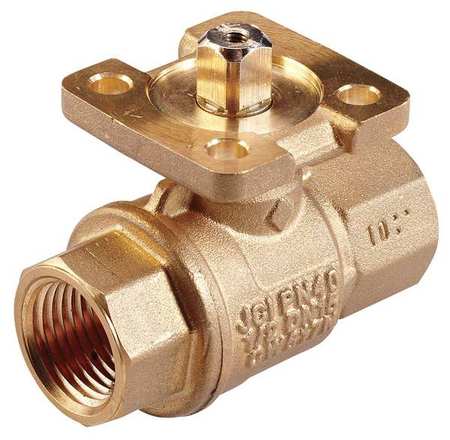

Johnson Controls VG1245AN+923GGA Model VG1245AN Two-Way Stainless Steel Trim NPT Ball Valve with Model VA9203-GGA-2Z Open Non-Spring-Return Electric Actuator Without Switch

Product Description

The Johnson Controls VG1245AN+923GGA Model VG1245AN Ball Valve is designed to regulate the flow of hot or chilled water and low-pressure steam in HVAC systems. It is available in sizes ranging from 1/2 inch to 2 inches. The valve is factory or field mounted to Johnson Controls VA9104, M9106, M9109, and M9100 Series Non-Spring-Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.

• Forged brass body provides 580 psig static pressure rating
• Compatible with VA9104, M9106, M9109, M9100 Series Non-Spring-Return, and VA9203, VA9208 Series Spring-Return Electric Actuators

Product Highlights

The valve is efficiently designed to regulate flow in various HVAC applications, ensuring optimal performance and reliability.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• Brand: Johnson Controls

Technical Specifications

• Model: VG1245AN
• Actuator Type: VA9203-GGA-2Z
• Valve Type: Two-Way NPT Ball Valve
• Size: 1/2 inch
• Static Pressure Rating: 580 psig
• Flow Control: On/Off, Floating, Proportional
• Body Material: Forged Brass
